  11. Rotary Laser Level, Ext, Red, 2000 ft.
This item is Discontinued.

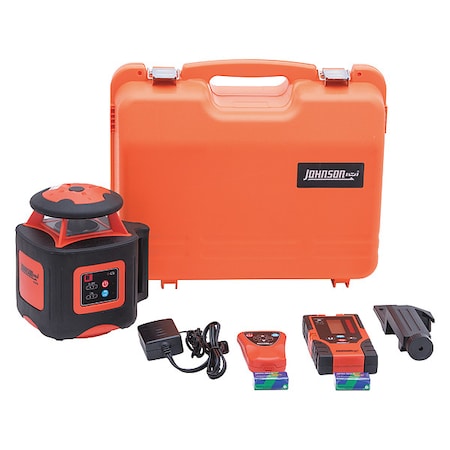

Johnson Level & Tool Rotary Laser Level, Ext, Red, 2000 ft. 40-6535

Rotary Laser Level, Ext, Red, 2000 ft. (Discontinued)

  • Mfr # 40-6535
  • Zoro # G2292841
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-6535
Zoro #
G2292841
UPC #
049448065356
Country of Origin
China

Dimensions

Height
7 3/8 in
Width
6 in
Length
8 1/4 in
Thread Size
5/8"-11
Overall Height
8 1/8 in
Overall Width
5 7/8 in
Overall Depth
7 3/8 in
Tripod Thread Size
5/8"-11

Details

Item
Rotary Laser
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
200 ft
Auto Leveling Range
+/-5 Degrees
Preset Angle
None
Rotating Speed
800 RPM
Auto Shutoff
Yes
Number of Scanning Modes
1
Includes
Case, Charger, Remote Control
Range w/Detector
2,000 ft
Number of Level Vials
0
Slope
+/- 8 Degrees
Laser Class
Class 3A
Grade Capability
Dual
Total Number of Vials
0
Interior/Exterior
Exterior
Plumb Up
No
Visual/Audible Indicators
Yes
Features
Height of Instrument/Tilt Alarm Function Ensures Product Accuracy, Remote Control and Detector for One Person Operation, Slope Operation Function Allows User to Perform Slope 8 Degrees in Both X and Y Axis
Plumb Down
No
Accuracy
+/-1/16 in @ 100 ft
Beam Color
Red
IP Rating
IP66
Number of Plumb Vials
0
Horizontal/Vertical
Horizontal
Number of 45 Degree Vials
0
Power Source
NiMH Rechargeable Battery Pack, 6V Adapter or (4) C Alkaline Batteries
Green Environmental Attribute
Product is Rechargeable
Weight
5.51 lb
Material
Plastic
Standards
CFR 21, Parts 1040.10 and 1040.11
Battery Type
NiMH
Mount Type
Tripod
Operating Temperature - Maximum
113 Degrees F
Indoor Range - Maximum
200 ft
Automatic Shutoff
Yes
Use Location
Outdoor
Level Indicators
Audible, Visual
Number of 45 Vials
0
Working Range without Detector - Maximum
200 ft
Number of Planes
0
Outdoor Range - Maximum
2,000 ft
Working Range with Detector - Maximum
2,000 ft
Operating Temperature - Minimum
14 Degrees F
Includes Batteries
Batteries Included
Bluetooth
Not Bluetooth Compatible
Laser Output
+/-5 mW
Laser Beam Color
Red
Self-Leveling Range
+/-5 Degrees

Description

Rotary Laser, Accuracy +/-1/16 in @ 100 ft, Battery Type NiMH, Bluetooth Not Bluetooth Compatible, Features Height of Instrument/Tilt Alarm Function Ensures Product Accuracy, Remote Control and Detector for One Person Operation, Slope Operation Function Allows User to Perform Slope 8 Degrees in Both X and Y Axis, Includes Case, Charger, Remote Control, Number of Beams 1, Number of Planes 0, Number of Dots 0, Number of Lines 0, Working Range with Detector - Maximum 2,000 ft

Restrictions

Hazardous material
