Johnson Level & Tool Rotary Laser, Red, Horizontal Projection 40-6541 - main

Rotary Laser, Red, Horizontal Projection

  • Mfr # 40-6541

  • Zoro # G5528159

product price: $1,183.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-6541
Zoro #
G5528159
UPC #
049448065417
Country of Origin
China

Dimensions

Width
6 in
Length
8 in
Thread Size
5/8"-11
Height
8 7/64 in
Overall Width
8 1/8 in
Overall Height
5 15/16 in
Tripod Thread Size
5/8"-11
Overall Depth
7 3/8 in

Details

Item
Rotary Laser
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
100 ft
Laser Class
Class 3A
Rotating Speed
800 RPM
Preset Angle
None
IP Rating
IP66
Accuracy
+/-1/16 in @ 100 ft
Auto Leveling Range
+/-5 Degrees
Auto Shutoff
Yes
Plumb Down
No
Number of Level Vials
0
Range w/Detector
2,000 ft
Slope
+/- 8 Degrees
Visual/Audible Indicators
Yes
Number of Plumb Vials
0
Grade Capability
Dual
Plumb Up
No
Includes

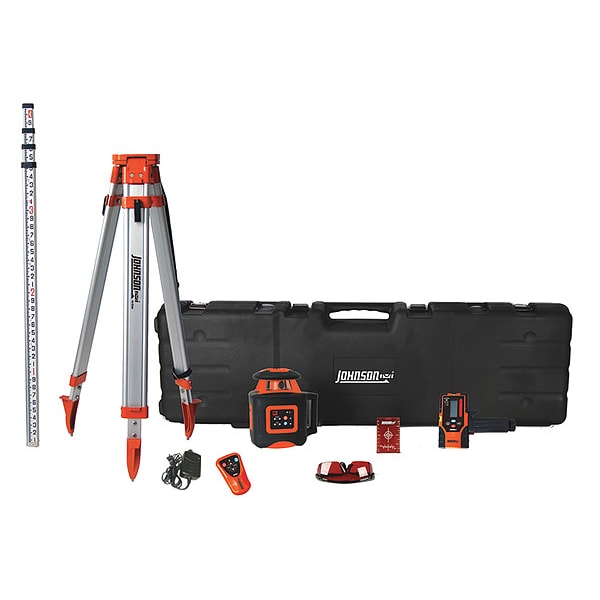

Grade Rod, Case, Charger, Target, Remote Control, Laser Glasses
Features
Includes Everything to Grade or Level Your Job Site, Includes Full Size 13' Grade Rod, Tilt Indicator Alerts Operator If the Laser is Bumped or Moved
Power Source
NiMH Rechargeable Battery Pack, 6V Adapter or (4) AA Alkaline Batteries
Number of Scanning Modes
0
Number of 45 Degree Vials
0
Total Number of Vials
0
Green Environmental Attribute
Product is Rechargeable
Material
Plastic
Standards
CFR 21, Parts 1040.10 and 1040.11, IEC 285
Weight
0.53 lb
Battery Type
NiMH
Working Range without Detector - Maximum
100 ft
Operating Temperature - Maximum
113 Degrees F
Outdoor Range - Maximum
2,000 ft
Working Range with Detector - Maximum
2,000 ft
Operating Temperature - Minimum
14 Degrees F
Self-Leveling Range
+/-5 Degrees
Includes Batteries
Batteries Included
Use Location
Indoor, Outdoor
Laser Beam Color
Red
Level Indicators
Audible, Visual
Number of Planes
0
Bluetooth
Not Bluetooth Compatible
Laser Output
Less Than or Equal To 5 mW
Indoor Range - Maximum
200 ft
Automatic Shutoff
Yes
Mount Type
Tripod
Number of 45 Vials
0

Description

The Johnson 40-6541 Rotary Laser is the perfect tool for any construction project. It can be used to level out floors, ceilings and walls with ease. With a red laser, you will have no problem projecting lines on surfaces up to 100 ft away. The laser features a tilt indicator that alerts you if the device has been bumped or moved. This self-leveling rotary laser measures 8 in. in length and 8 7/64 in. in height, with an accuracy of +/-1/16 in @ 100 ft. The Johnson 40-6541 Rotary Laser is just what you need for leveling your next project.

Restrictions

Hazardous material
