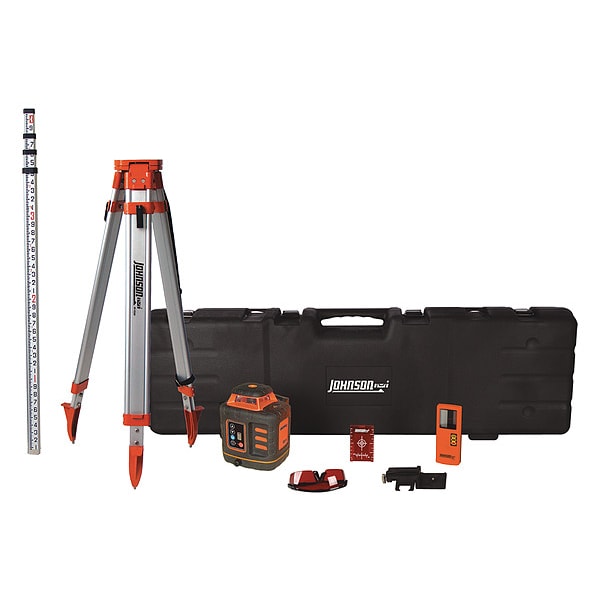

Johnson Level & Tool Rotary Laser, Red, Horizontal Projection 99-027K - main

Rotary Laser, Red, Horizontal Projection

  • Mfr # 99-027K

  • Zoro # G5529839

product price: $789.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Pendulum Self-Leveling
Number of Beams
2
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
99-027K
Zoro #
G5529839
UPC #
049448990276
Country of Origin
China

Dimensions

Length
8 in
Thread Size
5/8"-11
Width
6 13/64 in
Height
7 29/32 in
Overall Width
7 1/16 in
Overall Height
6 3/8 in
Tripod Thread Size
5/8"-11
Overall Depth
7 15/16 in

Details

Item
Rotary Laser
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Pendulum Self-Leveling
Number of Beams
2
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
200 ft
Laser Class
Class 3A
Rotating Speed
150 RPM, 200 RPM, 250 RPM, 300 RPM
Includes
Grade Rod, Case, Target, Laser Glasses
Number of 45 Degree Vials
0
Number of Level Vials
0
Visual/Audible Indicators
Yes
Range w/Detector
2,000 ft
Number of Scanning Modes
3
Plumb Up
Yes
Preset Angle
None
Plumb Down
No
Power Source
(4) C Alkaline Batteries
Total Number of Vials
0
Auto Shutoff
No
Accuracy
+/-3/16 in @ 100 ft
IP Rating
IP66
Auto Leveling Range
+/-3.5 Degrees
Features
90 Degrees Split Beam, Dustproof, Wash Down Rated Housing, Grade Rod Dual Graduations Read Engineers Scale Feet/Tenths on Front and Standard Feet/Inches on Back, Includes Everything to Grade or Level Your Job Site, Locking Compensator Protects Pendulum During Transport, Manual Leveling in Vertical Plane, One Person Operation
Grade Capability
Single
Number of Plumb Vials
0
Weight
4.4 lb
Material
Plastic
Standards
CFR 21, Parts 1040.10 and 1040.11, IEC 285
Battery Type
C Alkaline
Includes Batteries
Batteries Included
Number of Planes
0
Self-Leveling Range
+/-3.5 Degrees
Operating Temperature - Maximum
113 Degrees F
Automatic Shutoff
No
Laser Beam Color
Red
Working Range without Detector - Maximum
200 ft
Working Range with Detector - Maximum
2,000 ft
Number of 45 Vials
0
Laser Output
Less Than or Equal To 5 mW
Operating Temperature - Minimum
14 Degrees F
Use Location
Indoor, Outdoor
Outdoor Range - Maximum
2,000 ft
Level Indicators
Audible, Visual
Bluetooth
Not Bluetooth Compatible
Indoor Range - Maximum
200 ft
Plumb Direction
Plumb Up
Mount Type
Tripod

Description

Rotary Laser, Accuracy +/-3/16 in @ 100 ft, Battery Type C Alkaline, Bluetooth Not Bluetooth Compatible, Features 90 Degrees Split Beam, Dustproof, Wash Down Rated Housing, Grade Rod Dual Graduations Read Engineers Scale Feet/Tenths on Front and Standard Feet/Inches on Back, Includes Everything to Grade or Level Your Job Site, Locking Compensator Protects Pendulum During Transport, Manual Leveling in Vertical Plane, One Person Operation, Includes Grade Rod, Case, Target, Laser Glasses
