Shop JOMAR VALVE

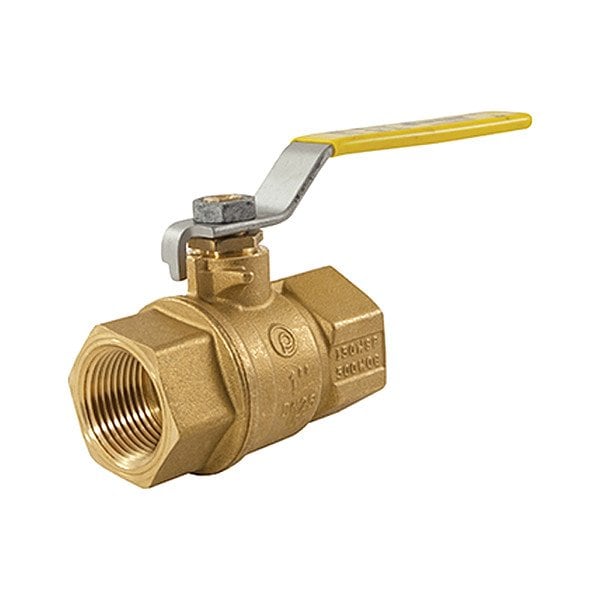

2 Piece, Full Port, Brass Ball Valve

  • Mfr # 100-708

  • Zoro # G122324111

product price:
$
169.99
/ea
Free Shipping & Returns

Key Features

Nominal Valve Size
2 in
Stem Type
Blowout Resistant
Connection Type - Side 1
Press
Ball Port Style
Full Port
Handle Length
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
100-708
Zoro #
G122324111
UPC #
662527290977
Country of Origin
Italy

Dimensions

Nominal Valve Size
2 in
Handle Length
6 in
Connection Size - Side 2
2 in
Handle Height
3.4 in
Wire Rope Length
5 in
Connection Size - Side 1
2 in
Overall Length
5 in
Length
5 in

Details

Stem Type
Blowout Resistant
Connection Type - Side 1
Press
Ball Port Style
Full Port
Stem Material
Brass
Maximum Pressure - Operating
400 psi
Valve Ways
2-Way
Handle Material
Steel
Maximum Pressure - Steam
Not Rated
Item
Manual Two-Way Ball Valve
Valve Body Style
Straight
Valve Construction
Two-Piece
Seal Material
FKM
Handle Type
Lever
Seat Material
PTFE
Connection Gender - Side 1
Male
Coefficient of Volume (Cv)
255.2
Handle - Locking
Locking
Connection Gender - Side 2
Female
Body Material
Brass
Connection Type - Side 2
Press
Standards
ANSI B1.20.1, ANSI Z21.15 (0.5 psig) (1/4 in to 3 in), ASME B16.33 (125 psig) (1/2 in to 2 in), ASME B16.38 (125psig) (2 1/2 in to 4 in), CGA 9.2 (1/4 in to 3 in), CSA, CSA 3.16 15 (125 PSI) (1/4 in to 4 in), Delta C (3/8 in to 3/4 in), FM Approval (1/4 in to 3/4 in 600 WOG, 1 in to 2 in 500 WOG), MSS SP-110, UL Listed (1/4 in to 2 in)
Vacuum Service Rating
29 in Hg
Operating Temperature - Maximum
250 Degrees F
Ball Material
Brass
For Media
Gas, Oil, Water
Cleaned and Bagged
Not Cleaned and Bagged

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Oil, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Applicable, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29 in Hg, Ball Material Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever
