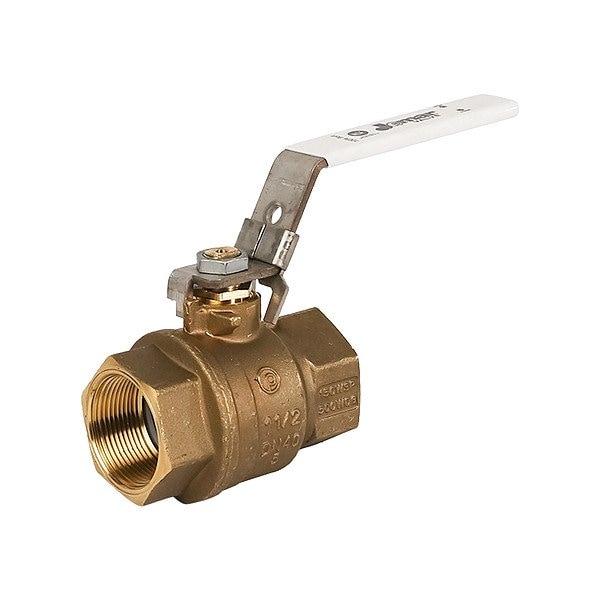

Shop JOMAR VALVE

2 Piece, Full Port, Threaded Connection,

  • Mfr # 100-405G-LH

  • Zoro # G422324255

product price:
$
67.39
/ea

Key Features

Connection Size - Side 1
1 in
Wire Rope Length
3.3 in
Valve Construction
Two-Piece
Body Material
Brass
Maximum Pressure - Steam
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
100-405G-LH
Zoro #
G422324255
UPC #
662527312037
Country of Origin
Italy
Valve Construction
Two-Piece
Body Material
Brass
Maximum Pressure - Steam
Not Rated
NSF Certifications for Food and Drinking Water
NSF 61
Handle Material
304 Stainless Steel
Handle - Locking
Locking
Connection Gender - Side 1
Male
Item
Manual Two-Way Ball Valve
Connection Type - Side 2
Press
Seal Material
FKM
Cleaned and Bagged
Not Cleaned and Bagged
Connection Type - Side 1
Press
Seat Material
PTFE
Operating Temperature - Maximum
250 Degrees F
Standards
ANSI B1.20.1, ANSI Z21.15 (0.5 psig), ASME B16.44 (5 psig), CGA CR91 (5 psig), CSA, ISO 6509, MSS SP-110, NSF, NSF 372, NSF 61 - Annex G, NSF 61-8
Coefficient of Volume (Cv)
52.2
Valve Ways
2-Way
Ball Material
Brass
Handle Type
Lever
Stem Type
Blowout Resistant
Stem Material
Brass
Maximum Pressure - Operating
500 psi
Connection Gender - Side 2
Female
Ball Port Style
Full Port
Valve Body Style
Straight
For Media
Gas, Oil, Water
Vacuum Service Rating
29 in Hg

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Oil, Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Applicable, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 500 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29 in Hg, Ball Material Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever
