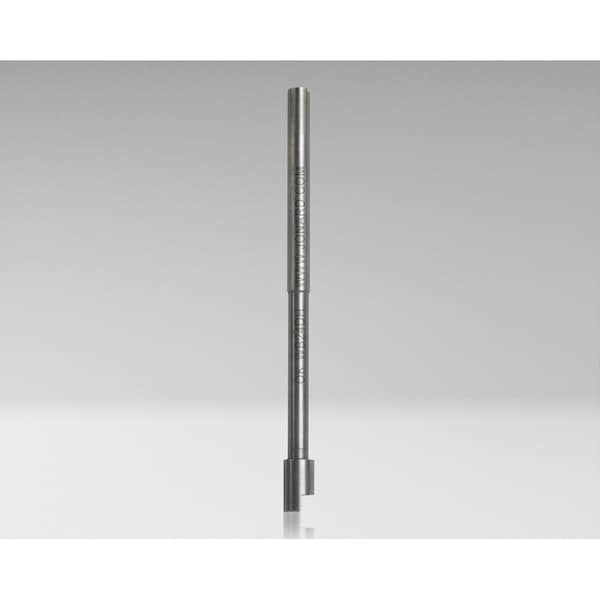

Coiltite Bit
Mfr # WB24DH
Zoro # G9473507
product price: $71.39
/eaKey Features
Type
Modified
Wire Gauge
24 AWG
Max. Insulation Dia. (In.)
0.046 in
Max. Terminal Diagonal (In.)
0.073 in
Effective Radius (In.)
0.117 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WB24DH
Zoro #
G9473507
UPC #
811490013223
Country of Origin
China
Dimensions
Max. Insulation Dia. (In.)
0.046 in
Effective Radius (In.)
0.117 in
Terminal Hole Depth
1.75 in
Terminal Hole Diameter
0.075 in
Wrap Post Size
0.045 in
Details
Type
Modified
Wire Gauge
24 AWG
Max. Terminal Diagonal (In.)
0.073 in
Min. Terminal Diagonal (In.)
0.054 in
Description
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P2224 and P2224INS
