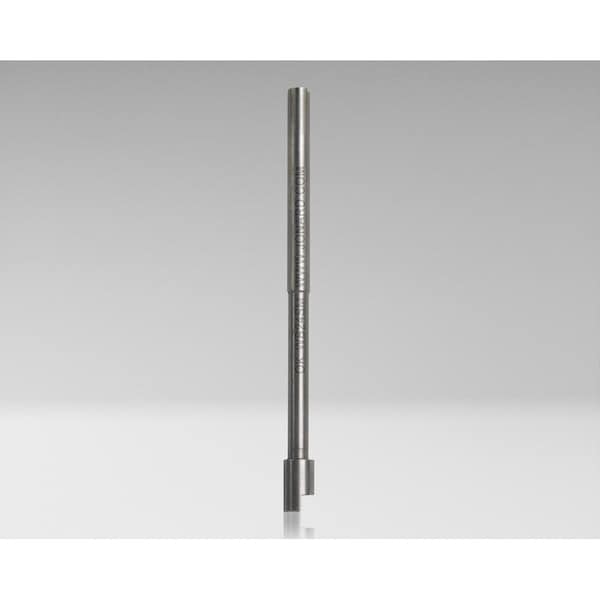

Coiltite Bit
Mfr # WB24SM
Zoro # G9473839
product price:Â $71.29
/eaKey Features
Type
Modified
Wire Gauge
24 AWG
Max. Insulation Dia. (In.)
0.044 in
Max. Terminal Diagonal (In.)
0.043 in
Effective Radius (In.)
0.098 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
WB24SM
Zoro #
G9473839
UPC #
811490013490
Country of Origin
China
Dimensions
Max. Insulation Dia. (In.)
0.044 in
Effective Radius (In.)
0.098 in
Wrap Post Size
0.025 in
Terminal Hole Depth
0.75 in
Terminal Hole Diameter
0.044 in
Details
Type
Modified
Wire Gauge
24 AWG
Max. Terminal Diagonal (In.)
0.043 in
Min. Terminal Diagonal (In.)
0.024 in
Description
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P3032LN
