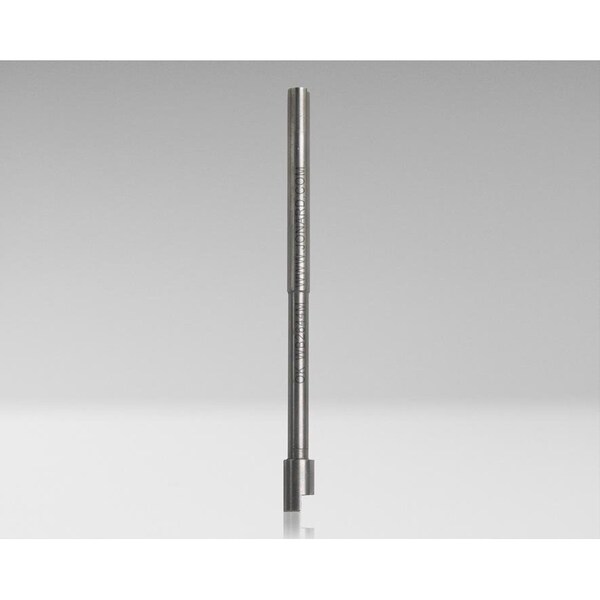

Coiltite Bit
Mfr # WB2669M
Zoro # G9473629
product price:Â
$
78.49
/ea
Key Features
Type
Modified
Wire Gauge
26 AWG
Max. Insulation Dia. (In.)
0.041 in
Effective Radius (In.)
0.109 in
Max. Terminal Diagonal (In.)
0.069 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WB2669M
- Zoro #
- G9473629
- UPC #
- 811490013544
- Country of Origin
- China
Dimensions
- Max. Insulation Dia. (In.)
- 0.041 in
- Effective Radius (In.)
- 0.109 in
- Terminal Hole Depth
- 1 in
- Wrap Post Size
- 0.045 in
- Terminal Hole Diameter
- 0.069 in
Details
- Type
- Modified
- Wire Gauge
- 26 AWG
- Max. Terminal Diagonal (In.)
- 0.069 in
- Min. Terminal Diagonal (In.)
- 0.053 in
Description
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P2224 and P2426INS
