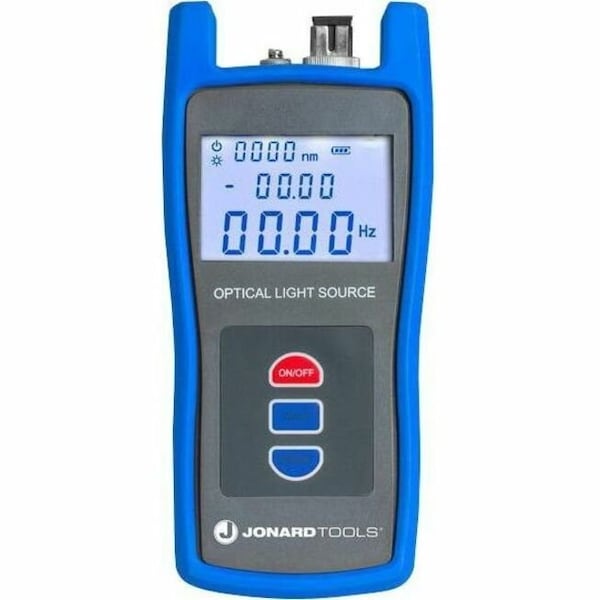

Jonard Tools Multi-Mode Optical Light Source FLS-55 - main

Multi-Mode Optical Light Source

  • Mfr # FLS-55

  • Zoro # G101209323

product price: $689.95
/ea
Free Shipping & Returns

Key Features

Includes

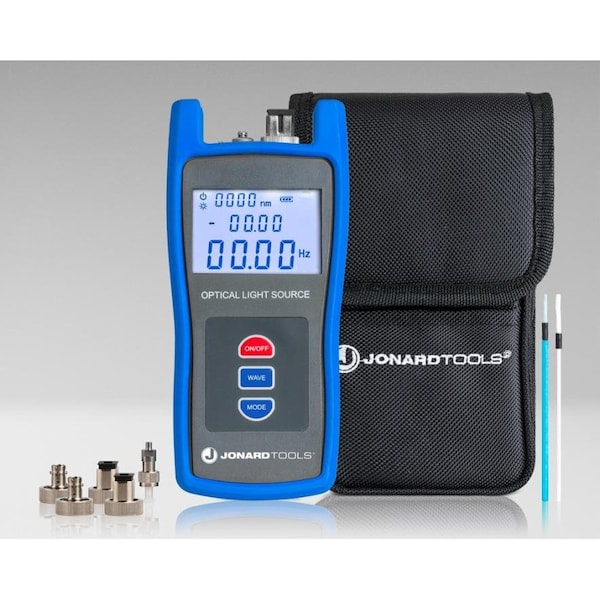

(2) Cleaning Swabs, FC Adapter, Fiber Optic Light Source, LC Adapter, SC Adapter, Storage Pouch
Features
Flush Button Design, Shatter-Resistant Sleeve
Application
Light Source For Multimode Or Single Mode Fiber Measurements
For Use With
UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors
Length
2.5 Inch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLS-55
Zoro #
G101209323
UPC #
810053350195
Country of Origin
China

Dimensions

Length
2.5 Inch
Height
9.75 Inch
Width
5.25 Inch
Spectral Width
10 nm
Wavelengths (nm)
850, 1300, 1310, 1550
Battery Size
AA

Details

Item
Optical Light Source
Includes
(2) Cleaning Swabs, FC Adapter, Fiber Optic Light Source, LC Adapter, SC Adapter, Storage Pouch
Features
Flush Button Design, Shatter-Resistant Sleeve
Application
Light Source For Multimode Or Single Mode Fiber Measurements
For Use With
UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors
Adapter Type
FC, LC, SC
Product Type
Stabilized Light Source
Storage Temperature
-25 ± 70°C
Battery Type
(3) AA 1.5V alkaline batteries
Fiber Types
Multimode & Singlemode
Typical Output Power
-7 dBm
Modulation Frequencies
CW / 270 Hz / 1 kHz / 2 kHz
Operating Temperature
-10 ± 60°C
Connector Types
1.25 mm LC and 2.5 mm FC/SC
Output Stability
± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
Includes Batteries
Yes
Backlit Digital Display
Yes
Adapters Included
FC, LC, SC
Number of Batteries Required
3

Description

Multi-Mode Optical Light Source, Application Light Source For Multimode Or Single Mode Fiber Measurements, For Use With UPC/PC FC Fiber Connectors, UPC/PC LC Fiber Connectors, UPC/PC SC Fiber Connectors, Features Backlit LCD Screen, Flush Button Design, Four Different Modulation Outputs, Highly Stable Output Power and Wavelengths, Shatter-Resistant Sleeve, Adapter Type FC, LC, SC
