This item is Discontinued.

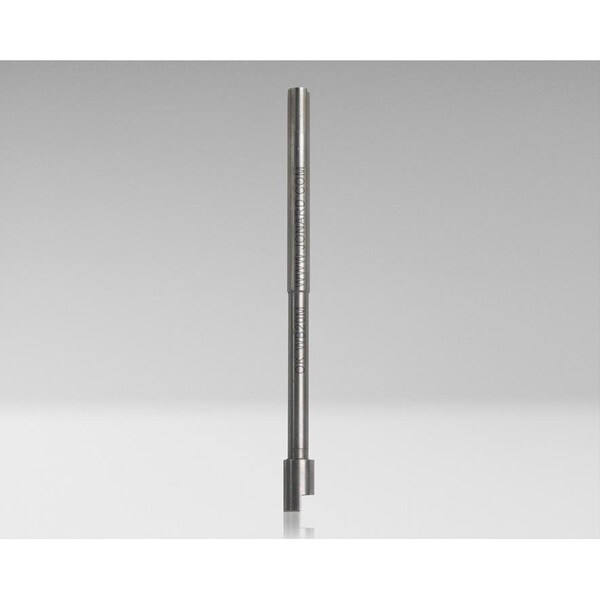

Jonard Tools Wire Wrapping Bit, 20 Awg WB20M

Wire Wrapping Bit, 20 Awg (Discontinued)

  • Mfr # WB20M
  • Zoro # G9473577
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WB20M
Zoro #
G9473577
UPC #
811490013537
Country of Origin
China

Dimensions

Max. Insulation Dia. (In.)
0.059 in
Wrapping Terminal Hole Dia. (In.)
0.059 in
Effective Radius (In.)
0.15 in
Wrapping Terminal Hole Depth (In.)
0.059 in
Wrap Post Size
0.045 in

Details

Type
Modified
Wire Gauge
20 AWG
Min. Terminal Diagonal (In.)
0.059 in
Max. Terminal Diagonal (In.)
0.059 in
Features
Provides 1.5 to 2 Turns Of Insulation
Wrap Function
Wrap

Description

3 inch Wire Wrapping Bit. Fully compatible with any make or model wire wrapping tool. Gauge Size: 20 AWG. Wrap Type: Modified. Max Insulation Diameter inches: 0.059. Minimum Terminal Diagonal Inches: 0.042. Max Terminal Diagonal Inches: 0.073. Terminal Hole Depth Inches: 1. Effective Radius Inches: 0.15. Terminal Hole Diameter Inches: 0.075
