  13. Head Lamp, Rectangle, 11-1/2 in. L, Black
Shop All Headlamps, Headlights & Components
J.W. Speaker

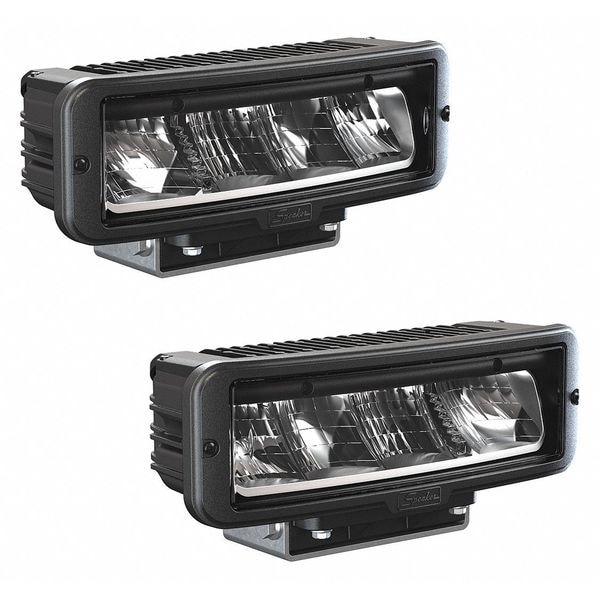

Head Lamp, Rectangle, 11-1/2 in. L, Black

product price: $559.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lens Shape - Vehicle Lighting Rectangular
  • Lamp Type Led
  • Lens Color Clear
  • Lighting Technology - Vehicle Lighting LED
  • Housing Color Black
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 3 3/4 in
Width - Vehicle Lighting 5 1/4 in
Length - Vehicle Lighting 11 1/2 in
Depth 5-1/4"
Length 11-1/2"
Width 3-47/64"
Overall Height 3 3/4 in
Overall Width 11 1/2 in
Overall Depth 5 1/4 in

Details

Item Headlight
Lens Shape - Vehicle Lighting Rectangular
Lamp Type Led
Lens Color Clear
Lighting Technology - Vehicle Lighting LED
Housing Color Black
Color Black
Wiring Connection - Vehicle Lighting Pigtail
Housing Material Xenoy
Mounting Pedestal
Includes Mounting Hardware
Mounting - Vehicle Lighting Pedestal
Standards DOT Compliant, ECE
Volt Bulb 12V
Used For Cars, Trucks, Vans
Base Mounting Centers 3-5/32 in
Post No
Fits Universal
Termination Type Pigtail
Mounting Type Surface
Current Rating 3.6 A
Lamp Life 40,000 hr
Material Polycarbonate, Xenoy(TM)
Shape Rectangular
Type Low Profile
Sub-Category Forward Lighting
Lumens - Vehicle Lighting 2,160 lm, 2,880 lm
Application Agriculture; Construction; Industrial; Material Handling; Mining; Specialty Vehicles; Truck and Bus
Lens Material Polycarbonate
Rating 3.6A
Features Built-In Low Beam, High Beam, Front Position, DRL, and Turn Signals
Lamp Life (Hours) 40,000 hr.
Lighting Technology LED
Peak Beam Intensity 52,000 cd
Heated Non-Heated
Beam Type High Beam, Low Beam
Minimum Brightness 2,160 lm
Vehicle Side Universal
Includes Electrical Connection Electrical Connection Included
Mount Style Surface
Series 9800 Series
Maximum Brightness 2,880 lm
Electrical Connection Wire Leads
Current 0.03 A @ 24V DC, 0.04 A @ 12V DC, 0.27 A @ 24V DC, 0.85 A @ 12V DC, 1.20 A @ 24V DC, 1.60 A @ 24V DC, 2.70 A @ 12V DC, 3.40 A @ 12V DC
IP Rating IP67
Compatible Electrical Connection Manufacturer Model Number 12052848
Mount Type Pedestal
Light Type Headlight

Description

Headlight, Light Type Headlight, Lighting Technology LED, Heated Non-Heated, Vehicle Class Not Applicable, Vehicle Side Universal, Beam Type High Beam, Low Beam, Mount Style Surface, Includes Electrical Connection Electrical Connection Included, Mount Type Pedestal, Electrical Connection Wire Leads, Shape Rectangular, Number of Bulbs Not Applicable, Overall Height 3 3/4 in, Overall Width 11 1/2 in, Overall Depth 5 1/4 in, Housing Material Xenoy, IP Rating IP67, Series 9800 Series
