J.W. Speaker

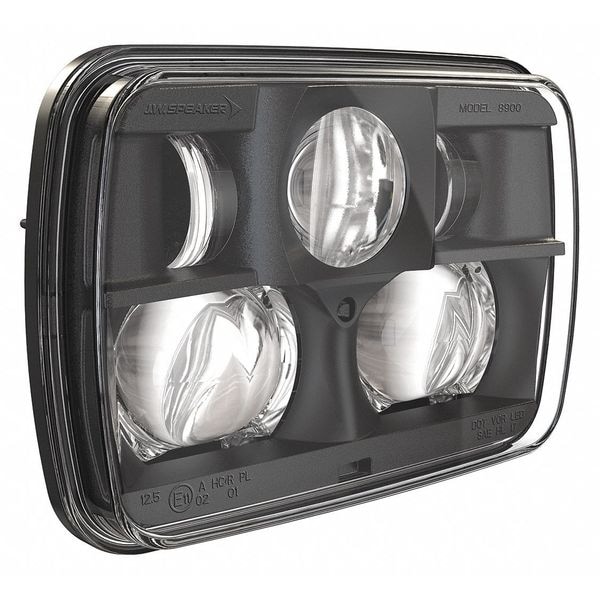

Headlight, LED, 5-19/32" H x 7-7/8" W

product price: $319.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lighting Technology - Vehicle Lighting LED
  • Lens Material Polycarbonate
  • Lens Color Clear
  • Width - Vehicle Lighting 7 7/8 in
  • Wiring Connection - Vehicle Lighting H4 Connector
See all product information

Product Information

Dimensions

Width - Vehicle Lighting 7 7/8 in
Height - Vehicle Lighting 5 19/32 in
Length - Vehicle Lighting 7 7/8 in
Overall Width 7 7/8 in
Overall Depth 3 3/4 in
Overall Height 5 9/16 in

Details

Lighting Technology - Vehicle Lighting LED
Item Headlight
Lens Material Polycarbonate
Lens Color Clear
Wiring Connection - Vehicle Lighting H4 Connector
Lamp Life 40,000 hr
Color Black
Type LED
Standards DOT Compliant, ECE, NCAP
Used For Cars, Trucks, Vans
Material Die Cast Aluminum
Lens Shape - Vehicle Lighting Rectangular
Housing Material Aluminum
Volt Bulb 12 to 24V
Post No
Housing Color Black
Mounting - Vehicle Lighting Recessed
Fits Universal
Lumens - Vehicle Lighting 975 lm, 1,200 lm
Current Rating 1.94 to 0.16 A
Features Drop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Shape Rectangular
Lighting Technology LED
Current 0.16 A @ 24V DC, 0.22 A @ 12V DC, 0.87 A @ 24V DC, 1.03 A @ 24V DC, 1.67 A @ 12V DC, 1.94 A @ 12V DC
Mount Style Recessed
Beam Type High Beam, Low Beam
Series 8900 Evolution 2
Heated Non-Heated
IP Rating IP69K
Electrical Connection H4 Connector
Light Type Headlight
Maximum Brightness 1,200 lm
Compatible Electrical Connection Manufacturer Model Number 8000381
Maximum Operating Temperature 149 Degrees F
Minimum Operating Temperature -40 Degrees F
Vehicle Side Universal
Minimum Brightness 975 lm
Mount Type Low Profile Panel Mount
Includes Electrical Connection Electrical Connection Included

Description

Headlight, Light Type Headlight, Lighting Technology LED, Heated Non-Heated, Vehicle Class Not Applicable, Vehicle Side Universal, Beam Type High Beam, Low Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Mount Type Low Profile Panel Mount, Electrical Connection H4 Connector, Shape Rectangular, Number of Bulbs Not Applicable, Overall Height 5 9/16 in, Overall Width 7 7/8 in, Overall Depth 3 3/4 in, Housing Material Aluminum, IP Rating IP69K
