  13. Headlight, LED, 5-19/32" H x 7-7/8" W
Shop All Vehicle Bulbs & Lenses
J.W. Speaker

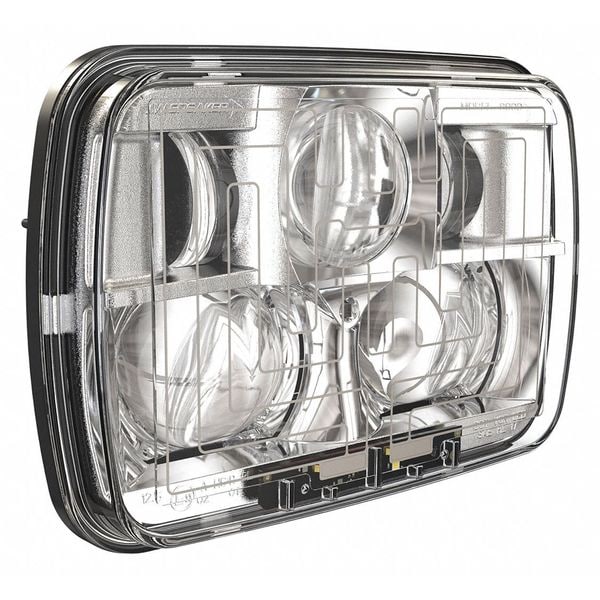

Headlight, LED, 5-19/32" H x 7-7/8" W

product price: $328.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Post No
  • Fits Universal
  • Height - Vehicle Lighting 5 19/32 in
  • Material Die Cast Aluminum
  • Lens Shape - Vehicle Lighting Rectangular
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 5 19/32 in
Width - Vehicle Lighting 7 7/8 in
Length - Vehicle Lighting 7 7/8 in
Overall Height 5 9/16 in
Overall Width 7 7/8 in
Overall Depth 3 3/4 in

Details

Post No
Fits Universal
Material Die Cast Aluminum
Lens Shape - Vehicle Lighting Rectangular
Used For Cars, Trucks, Vans
Type LED
Lighting Technology - Vehicle Lighting LED
Color White
Lamp Life 40,000 hr
Standards DOT Compliant, ECE, NCAP
Mounting - Vehicle Lighting Recessed
Lens Color Clear
Housing Color Black
Housing Material Aluminum
Current Rating 5.35 to 1.32 A
Lumens - Vehicle Lighting 975 lm, 1,200 lm
Item Headlight
Lens Material Polycarbonate
Wiring Connection - Vehicle Lighting H4 Connector
Volt Bulb 12 to 24V
Features Drop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Shape Rectangular
Lighting Technology LED
Electrical Connection H4 Connector
Mount Type Low Profile Panel Mount
Vehicle Side Universal
Minimum Brightness 975 lm
IP Rating IP69K
Mount Style Recessed
Minimum Operating Temperature -40 Degrees F
Maximum Brightness 1,200 lm
Compatible Electrical Connection Manufacturer Model Number 8000381
Heated Heated
Beam Type High Beam, Low Beam
Current 1.32 A @ 24V DC, 2.10 A @ 24V DC, 2.50 A @ 24V DC, 2.80 A @ 12V DC, 4.30 A @ 12V DC, 5.35 A @ 12V DC
Light Type Headlight
Includes Electrical Connection Electrical Connection Included
Maximum Operating Temperature 149 Degrees F
Series 8910 Evolution 2

Description

Headlight, Light Type Headlight, Lighting Technology LED, Heated Heated, Vehicle Class Not Applicable, Vehicle Side Universal, Beam Type High Beam, Low Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Mount Type Low Profile Panel Mount, Electrical Connection H4 Connector, Shape Rectangular, Number of Bulbs Not Applicable, Overall Height 5 9/16 in, Overall Width 7 7/8 in, Overall Depth 3 3/4 in, Housing Material Aluminum, IP Rating IP69K
