J.W. Speaker

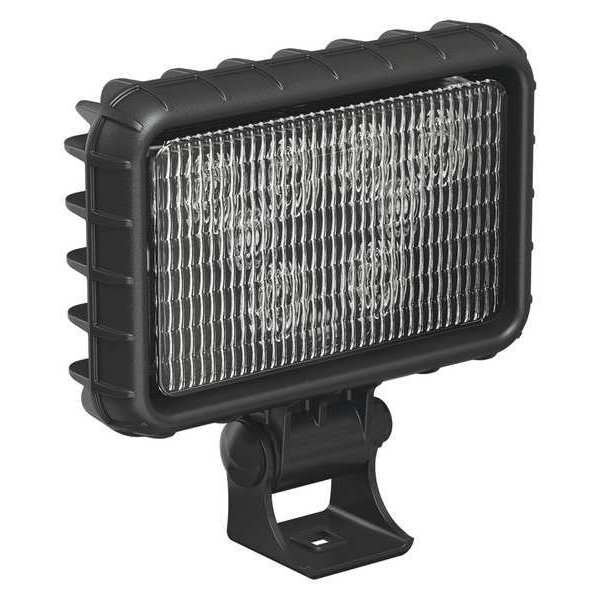

Work Light, 5-13/32inL, Flood Beam Pattern

product price: $85.15
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lighting Technology LED
  • Length 5-13/32"
  • Housing Material Polycarbonate
  • Application Exterior
  • Lens Material Polycarbonate
See all product information

Product Information

Dimensions

Length 5-13/32"
Width - Vehicle Lighting 1 7/8 in
Height - Vehicle Lighting 5 1/4 in
Depth 1-57/64"
Height 5-1/4"
Length - Vehicle Lighting 5 1/2 in
Overall Width 5 3/8 in
Overall Height 5 1/4 in
Overall Depth 1 7/8 in

Details

Lighting Technology LED
Housing Material Polycarbonate
Application Exterior
Lens Material Polycarbonate
Current Drawn 1.3 A
Wiring Connection - Vehicle Lighting DT04-2P Connector
Lighting Technology - Vehicle Lighting LED
Lens Color Clear
Lens Shape - Vehicle Lighting Rectangular
Base Material Polycarbonate
Voltage 12 to 24V DC
Item Vehicle Work Light
Housing Color Black
Features Flood Beam Pattern
Sub-Category Work Lights
Lamp Type LED
Lumens - Vehicle Lighting 1,680 lm
Standards SAE
Lens Design Rectangular
Light Output 1,680 lm
Mounting - Vehicle Lighting Bracket
Includes Hardware, Mounting Bracket, Pigtail
Mounting Bracket
Maximum Brightness 1,680 lm
Wattage 12 W
Installation Type Removable
Maximum Operating Temperature 149 Degrees F
Mount Type Bolt
Compatible Electrical Connection Manufacturer Model Number DT04-2P
Minimum Operating Temperature -40 Degrees F
Beam Type Flood
Compatible Vehicle Type ATVs, Forklifts, Off-Road Vehicles, Trucks
Current 0.7 A @ 24V DC, 1.3 A @ 12V DC
Electrical Connection DT04-2P Connector
Head Shape Rectangular
Mount Style Surface
IP Rating IP69K
Use Location Exterior
Series XD Series
Includes Electrical Connection Electrical Connection Included

Description

Vehicle Work Light, IP Rating IP69K, Beam Type Flood, Overall Depth 1 7/8 in, Installation Type Removable, Mount Type Bolt, Operating Voltage 9-32V DC, Lighting Technology LED, Overall Diameter Not Applicable, Overall Height 5 1/4 in, Head Shape Rectangular, Overall Width 5 3/8 in, Electrical Connection DT04-2P Connector, Vehicle Class Not Applicable, Standards SAE, Includes Electrical Connection Electrical Connection Included, Compatible Vehicle Type ATVs, Forklifts, Off-Road Vehicles, Trucks
