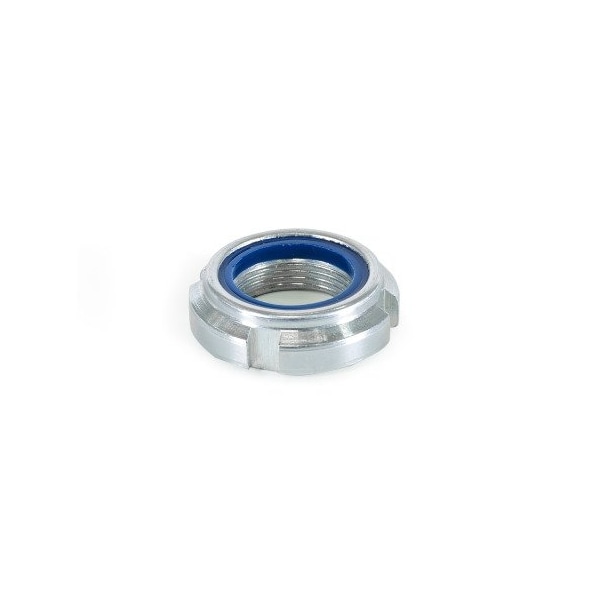

Bearing Locknuts
- Mfr # 1804.1-M20X1
- Zoro # G522730680
product price:Â
$
4.79
/ea
Sold in multiples of 2 for $9.58
Key Features
Locating Slot Width
4 mm
Bore Type
Threaded Bore
System of Measurement
Metric
For Use On
Roller Bearings
Minimum Operating Temperature
-22 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1804.1-M20X1
- Zoro #
- G522730680
- UPC #
- 664423377028
- Country of Origin
- Germany
Dimensions
- Locating Slot Width
- 4 mm
- Face Diameter
- 27 mm
- Locating Slot Depth
- 6.5 mm
- Width Tolerance
- h14
- Bore Diameter
- 20 mm
- Nut Outside Diameter
- 32 mm
- Bore Thread Size
- M20x1.00
- Nut Width
- 9.5 mm
Details
- Bore Type
- Threaded Bore
- System of Measurement
- Metric
- For Use On
- Roller Bearings
- Item
- Bearing Locknut
- Minimum Operating Temperature
- -22 Degrees F
- Maximum Operating Temperature
- 194 Degrees F
- Nut Material Finish
- Blue Passivated Zinc Plated
- Standards
- RoHS Compliant
- Nut Material Grade
- Class 5
- Nut Material
- Carbon Steel
- Nut Locking Type
- Polyamide Insert
- Shaft Tolerance
- 6H
- Resistance Properties
- Corrosion-Resistant
Description
Bearing Locknut, Industry Standard Size Not Applicable, Bore Thread Size M20x1.00, Nut Outside Diameter 32 mm, Face Diameter 27 mm, Nut Width 9.5 mm, Nut Material Carbon Steel, Nut Material Grade Class 5, System of Measurement Metric, Resistance Properties Corrosion-Resistant, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -22 Degrees F, Nut Locking Type Polyamide Insert, Nut Material Finish Blue Passivated Zinc Plated, For Use On Roller Bearings
