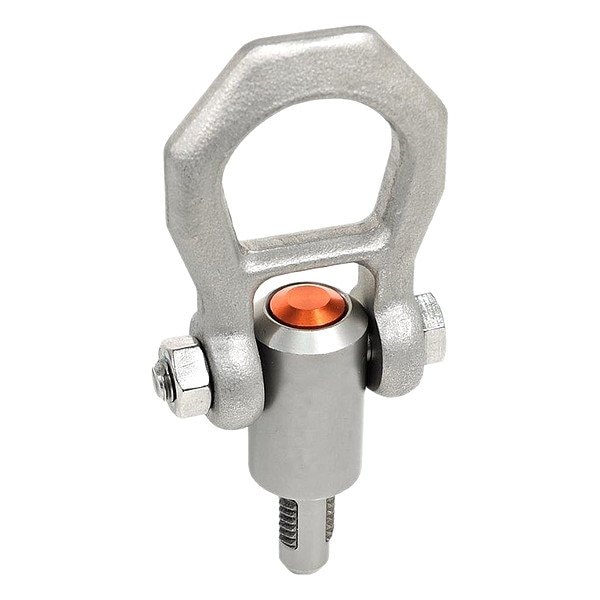

GN1133-1/2X13-0.669-NI THREADED LIFTING
Mfr # 1133-1/2X13-0.669-NI
Zoro # G012473011
product price:Â
$
814.99
/ea
Free Shipping & Returns
Key Features
Series
GN 1133
Thread Size
1/2"-13
Standards
CE Certified, RoHS Compliant, TUV
Nominal Force
1,529 lbf
Working Load Limit - Side Load
2.7 kN (607 lbf)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1133-1/2X13-0.669-NI
- Zoro #
- G012473011
- UPC #
- 664423614277
- Country of Origin
- Germany
- Item
- Quick-Release Hoist Ring
- Series
- GN 1133
- Standards
- CE Certified, RoHS Compliant, TUV
- Nominal Force
- 1,529 lbf
- Working Load Limit - Side Load
- 2.7 kN (607 lbf)
- Includes Visual Tension Indicator
- Visual Tension Indicator Not Included
- Maximum Operating Temperature
- 482 Degrees F
- Movement Type
- Pivot
- Operation
- Lifting
- Mounting Orientation
- Top and Side
- Material
- Stainless Steel
- Pivot Angle
- 180 Degrees
- Color
- Orange
- Minimum Operating Temperature
- -4 Degrees F
- Mount Type
- Quick-Release
Description
Quick-Release Hoist Ring, Movement Type Pivot, Material Stainless Steel, Mount Type Quick-Release, Thread Size 1/2 In.-13, Operation Lifting, Pivot Angle 180 Degrees , Usable Thread Length 1/2 in, Bail Inside Length 1 1/8 in, Bail Inside Width 1 1/8 in, Bail Thickness 3/8 in, Overall Length 3 1/2 in, Overall Width 1 7/8 in, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 482 Degrees F, Color Orange, Standards CE Certified, RoHS Compliant, TUV, Series GN 1133
