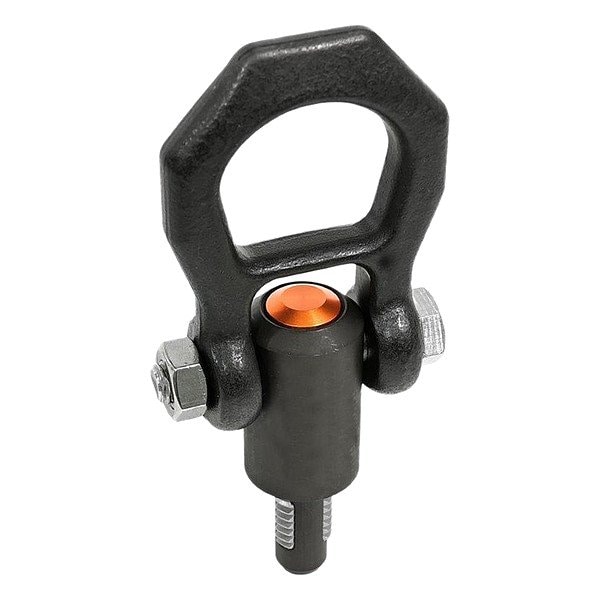

GN1133-M20-22-ST THREADED LIFTING PIN
Mfr # 1133-M20-22-ST
Zoro # G712472994
product price: $732.99
/ea
Free Shipping & Returns
Key Features
Series
GN 1133
Thread Size
M20
Standards
CE Certified, RoHS Compliant, TUV
Finish
Black Oxide
Usable Thread Length
17 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1133-M20-22-ST
Zoro #
G712472994
UPC #
664423614260
Country of Origin
Germany
Dimensions
Thread Size
M20
Usable Thread Length
17 mm
Overall Width
56 mm
Bail Inside Width
36 mm
Bail Inside Length
32.6 mm
Overall Length
114 mm
Bail Thickness
15 mm
Details
Item
Quick-Release Hoist Ring
Series
GN 1133
Standards
CE Certified, RoHS Compliant, TUV
Finish
Black Oxide
Pivot Angle
180 Degrees
Mounting Orientation
Top and Side
Includes Visual Tension Indicator
Visual Tension Indicator Not Included
Material
Steel
Maximum Operating Temperature
482 Degrees F
Working Load Limit - Side Load
5 kN (1124 lbf)
Mount Type
Quick-Release
Color
Orange
Minimum Operating Temperature
-4 Degrees F
Nominal Force
16.6 kN
Movement Type
Pivot
Operation
Lifting
Description
Quick-Release Hoist Ring, Movement Type Pivot, Material Steel, Mount Type Quick-Release, Thread Size M20, Operation Lifting, Pivot Angle 180 Degrees , Usable Thread Length 17 mm, Bail Inside Length 32.6 mm, Bail Inside Width 36 mm, Bail Thickness 15 mm, Overall Length 114 mm, Overall Width 56 mm, Finish Black Oxide, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 482 Degrees F, Color Orange, Standards CE Certified, RoHS Compliant, TUV, Series GN 1133
