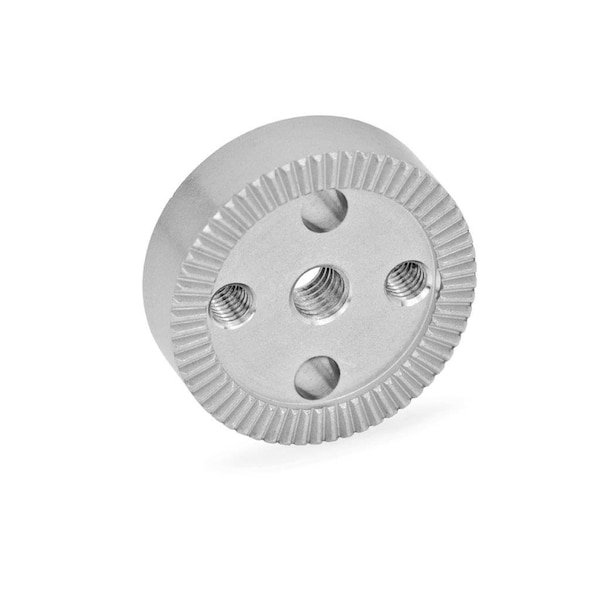

Gn187.4-32-60-C-Ni Serrated Locking Plate
Mfr # 187.4-32-60-C-NI
Zoro # G711289142
product price:Â
$
43.75
/ea
Key Features
Material
Stainless steel 316
Primary Application
With serrated locking plates GN 187.4, components can be adjusted and locked form-fit at a defined angle. The angle position of the serration is adapted to the mounting holes, ensuring an parallel or right-angled arrangement. The tooth count of 48 / 60 enables the adjustment in 7.5° or 6° steps.
Knob Dia.
32mm
Thickness
9mm
Tooth Count
60
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 187.4-32-60-C-NI
- Zoro #
- G711289142
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Knob Dia.
- 32mm
- Thickness
- 9mm
- Pin Hole Dia.
- M5
- Bore Dia.
- M6
Details
- Material
- Stainless steel 316
- Primary Application
- With serrated locking plates GN 187.4, components can be adjusted and locked form-fit at a defined angle. The angle position of the serration is adapted to the mounting holes, ensuring an parallel or right-angled arrangement. The tooth count of 48 / 60 enables the adjustment in 7.5° or 6° steps.
- Tooth Count
- 60
