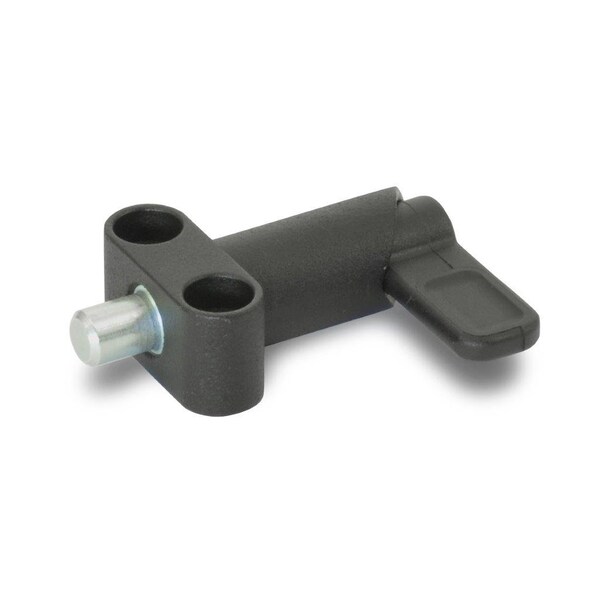

Gn612.9-6-10-16-Sw Cam Action Plunger
Mfr # 612.9-6-10-16-SW
Zoro # G211289109
product price:Â
$
15.49
/ea
Key Features
Material
Body-Zinc die-cast, Pin-Steel zinc plated, Arm-Technopolymer plastic
Length
46mm
Shank Dia.
6mm
Shank Length
10mm
Primary Application
GN 612.9 cam action indexing plungers are best utilized in applications where the pin may need to be retracted periodically. By rotating the lever arm 180° the plunger pin is withdrawn. The notch allows for safe positioning while the plunger pin is held in the retracted position.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 612.9-6-10-16-SW
- Zoro #
- G211289109
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 46mm
- Shank Dia.
- 6mm
- Shank Length
- 10mm
Details
- Material
- Body-Zinc die-cast, Pin-Steel zinc plated, Arm-Technopolymer plastic
- Primary Application
- GN 612.9 cam action indexing plungers are best utilized in applications where the pin may need to be retracted periodically. By rotating the lever arm 180° the plunger pin is withdrawn. The notch allows for safe positioning while the plunger pin is held in the retracted position.
- Color
- Black
- End Spring Load
- 32 N
- Initial Spring Load
- 12 N
