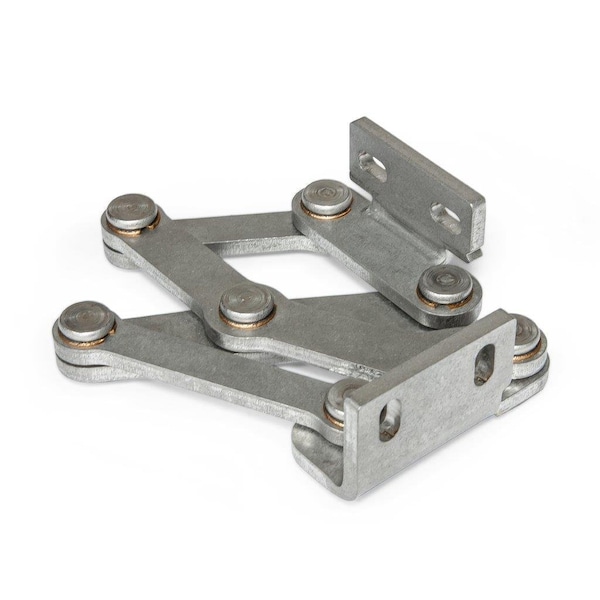

GN7231-NI-50-L-MT MULTIPLE-JOINT HINGE
- Mfr # 7231-NI-50-L-MT
- Zoro # G911288990
product price:Â
$
131.99
/ea
Free Shipping & Returns
Key Features
Material
Stainless steel 304
Length
126mm
Features
Left-hand assembly angle bracket
Finish
Matte, tumbled finish
Primary Application
Multiple-joint hinges GN 7231 are installed on the inside of flaps, hatches and doors to save space and ensure protection against vandalism. The hinges have a maximum opening angle of 90°, making them perfect for use with thick door leaves.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7231-NI-50-L-MT
- Zoro #
- G911288990
- UPC #
- 664423617117
- Country of Origin
- Germany
- Material
- Stainless steel 304
- Features
- Left-hand assembly angle bracket
- Finish
- Matte, tumbled finish
- Primary Application
- Multiple-joint hinges GN 7231 are installed on the inside of flaps, hatches and doors to save space and ensure protection against vandalism. The hinges have a maximum opening angle of 90°, making them perfect for use with thick door leaves.
- Mounting Distance
- 30 mm
- Range of Motion - Maximum
- 90 Degrees
- Body Material Grade
- 304
- Load Capacity per Pair - Axial
- 175 N
- Slot Center to Opposite Bracket Edge
- 65 mm
- Assembly Type
- Left Hand Assembly
- Nut Projection
- 2.5 mm
- Friction Bearing Material
- Bronze
- Body Finish
- Matte; Tumbled
- Item
- Multi Joint Concealed Hinge
- Load Capacity per Pair - Radial
- 750 N
Dimensions
- Length
- 126mm
- Width
- 101 mm
- Bore Dia.
- 6.5 mm
- Focus to Mounting Surface Height
- 37 mm
- Maximum Door or Housing Thickness - Inset
- 60 mm (s), No Limit (b)
- Overall Height
- 126 mm
- Maximum Door or Housing Thickness - Mitered
- 50 mm (s), 50 mm (b)
- Bracket Length
- 50 mm
- Focus to Mounting Surface Length
- 19 mm
- Nominal Installation Space Radius
- 97.5 mm
- Maximum Door or Housing Thickness - Surface-Mounted
- No Limit (s), 60 mm (b)
- Bracket Thickness
- 5 mm
- Slot Width
- 6.5 mm
- Overall Length
- 101 mm
- Overall Width
- 37.5 mm
Description
GN7231-NI-50-L-MT MULTIPLE-JOINT HINGE
