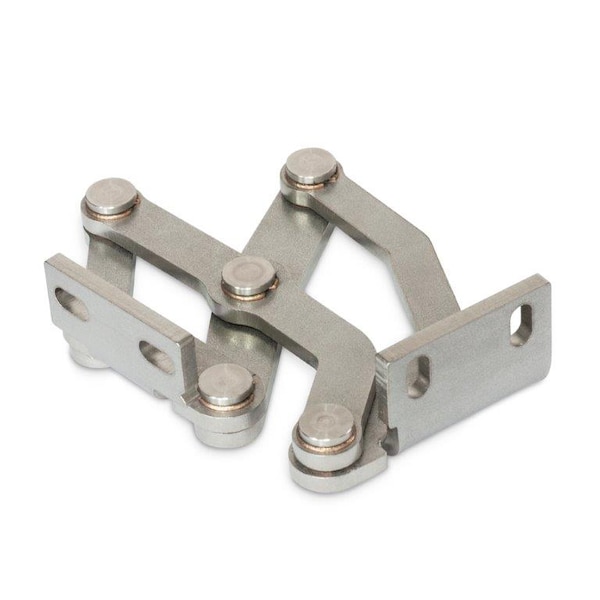

GN7237-NI-40-R-MT MULTIPLE-JOINT HINGE
- Mfr # 7237-NI-40-R-MT
- Zoro # G4724434
product price:Â
$
119.07
/ea
Free Shipping & Returns
Key Features
Overall Height
105.2 mm
Maximum Door or Housing Thickness - Surface-Mounted
No Limit (s), 25 mm (b)
Overall Width
30.5 mm
Range of Motion - Maximum
180 Degrees
Bracket Thickness
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7237-NI-40-R-MT
- Zoro #
- G4724434
- UPC #
- 664423617254
- Country of Origin
- Germany
- Range of Motion - Maximum
- 180 Degrees
- Slot Center to Opposite Bracket Edge
- 51 mm
- Friction Bearing Material
- Bronze
- Body Finish
- Matte; Tumbled
- Item
- Multi Joint Concealed Hinge
- Load Capacity per Pair - Axial
- 175 N
- Assembly Type
- Right Hand Assembly
- Body Material Grade
- 304
- Nut Projection
- 2.5 mm
- Load Capacity per Pair - Radial
- 650 N
Dimensions
- Overall Height
- 105.2 mm
- Maximum Door or Housing Thickness - Surface-Mounted
- No Limit (s), 25 mm (b)
- Overall Width
- 30.5 mm
- Bracket Thickness
- 4 mm
- Bracket Length
- 40 mm
- Nominal Installation Space Radius
- 78.5 mm
- Focus to Mounting Surface Height
- 29.5 mm
- Maximum Door or Housing Thickness - Mitered
- 21 mm (s), 21 mm (b)
- Overall Length
- 70.1 mm
- Maximum Door or Housing Thickness - Inset
- 25 mm (s), No Limit (b)
- Focus to Mounting Surface Length
- 13 mm
- Slot Width
- 5.3 mm
Description
GN7237-NI-40-R-MT MULTIPLE-JOINT HINGE
