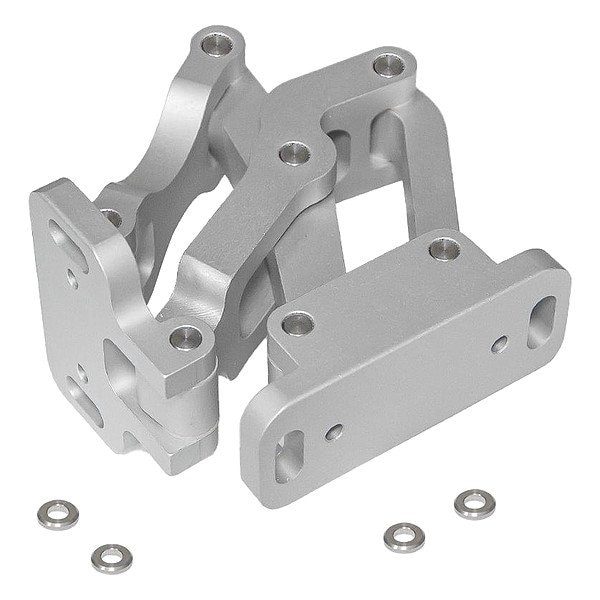

GN7243-AL-75-EL MULTIPLE-JOINT HINGE
Mfr # 7243-AL-75-EL
Zoro # G215705513
product price:Â
$
434.99
/ea
Free Shipping & Returns
Key Features
Maximum Door or Housing Thickness - Surface-Mounted
No Limit (s), 24 mm (b)
Focus to Mounting Surface Height
28 mm
Slot Width
6.5 mm
Load Capacity per Pair - Axial
650 N
Maximum Door or Housing Thickness - Mitered
20 mm (s), 20 mm (b)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7243-AL-75-EL
- Zoro #
- G215705513
- UPC #
- 664423617292
- Country of Origin
- Germany
Dimensions
- Maximum Door or Housing Thickness - Surface-Mounted
- No Limit (s), 24 mm (b)
- Focus to Mounting Surface Height
- 28 mm
- Slot Width
- 6.5 mm
- Maximum Door or Housing Thickness - Mitered
- 20 mm (s), 20 mm (b)
- Bracket Length
- 75 mm
- Bracket Thickness
- 7 mm
- Nominal Installation Space Radius
- 73 mm
- Maximum Door or Housing Thickness - Inset
- 24 mm (s), No Limit (b)
- Focus to Mounting Surface Length
- 36 mm
Details
- Item
- Multi Joint Concealed Hinge
- Load Capacity per Pair - Axial
- 650 N
- Pin and Washer Material
- Stainless Steel
- Friction Bearing Material
- Plastic
- Slot Center to Opposite Bracket Edge
- 105.5 mm
- Range of Motion - Maximum
- 120 Degrees
- Load Capacity per Pair - Radial
- 750 N
Description
GN7243-AL-75-EL MULTIPLE-JOINT HINGE
