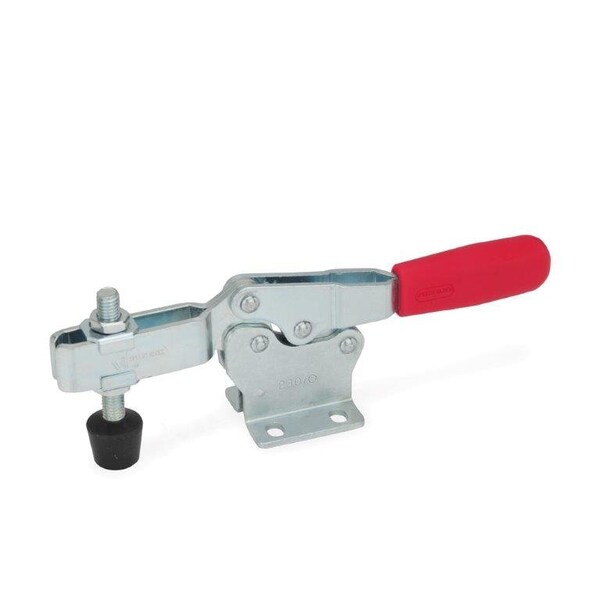

Horizontal Acting Toggle Clamp, 168 mm
- Mfr # 820-130-MC
- Zoro # G4718999
product price:Â
$
21.55
/ea
Key Features
Thread Size
M6
Finish
Zinc plated
Overall Length
168 mm
Overall Height
2.01 in
Plate Width
1.57 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 820-130-MC
- Zoro #
- G4718999
- UPC #
- 664423615328
- Country of Origin
- Italy
- Finish
- Zinc plated
- Clamp Material
- Steel
- Mounting Distance
- 1.02 in
- Holding Force
- 1000 N
- Grip Material
- Plastic
- Type
- U-bar, washers, spindle
- Spindle Material
- Steel
- Accommodates Workpiece Variation
- No
- Application
- Specific Clamping Screw
- Includes
- (2) Flanged Washers, GN 708.1 Spindle Assembly, Neoprene Rubber Tip
- Mounting Holes Center to Center - Long Side
- 28.4 mm
- Body Material
- Case-Hardened Steel
- Clamp Arm Opening Angle
- 90 Degrees
- Arm Style
- U-Bar
- Base Mounting Style
- Flange
- Holding Capacity - Maximum
- 1,000 N
- Handle Material
- Plastic
- Handle Color
- Red
- Tip Material
- Rubber
- Handle Orientation
- Horizontal
- Item
- Horizontal Acting Toggle Clamp
- Clamping Force
- 225 lb
Dimensions
- Thread Size
- M6
- Overall Length
- 168 mm
- Overall Height
- 2.01 in
- Plate Width
- 1.57 in
- Plate Length
- 1.42 in
- U-Bar Arm Length
- 2.09 in
- Length
- 168 mm
- Height Under Arm
- 30.5 mm
- Spindle Thread Size
- M6
- Overall Depth
- 51 mm
- Overall Width
- 40 mm
- Arm Length
- 64 mm
Description
Horizontal Acting Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 1,000 N, Arm Style U-Bar, Tip Material Rubber, Clamp Arm Opening Angle 90 Degrees , Arm Length 64 mm, Height Under Arm 30.5 mm, Accommodates Workpiece Variation No, Application Specific Clamping Screw, Body Material Case-Hardened Steel, Clamping Force 225 lb, Handle Color Red, Handle Material Plastic, Includes (2) Flanged Washers, GN 708.1 Spindle Assembly, Neoprene Rubber Tip
