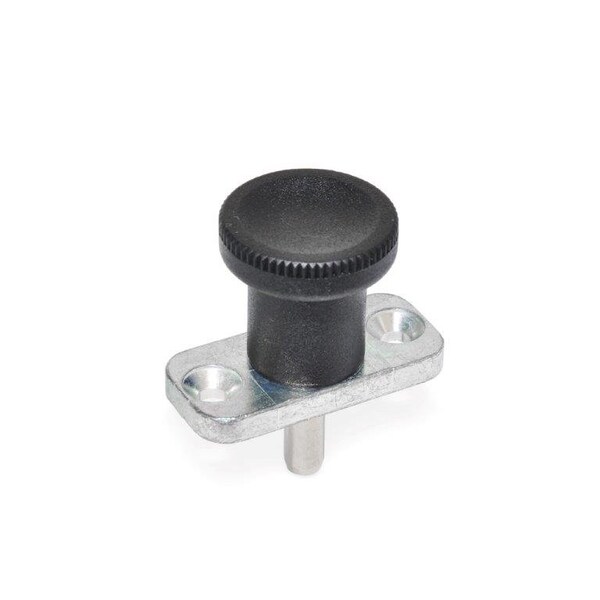

Indexing Plungers - Plate Mount

  • Mfr # 6W14L62
  • Zoro # G4646698
product price:
$
18.99
/ea

Key Features

Knob Type
Plastic
Length
45 mm
Plunger Dia.
6 mm
Plate Width
40 mm
End Load
25 N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6W14L62
Zoro #
G4646698
UPC #
664423540842
Country of Origin
Germany
Knob Type
Plastic
End Load
25 N
Plunger Pin Material
Stainless Steel
Plate Material
Die-Cast Zinc
Initial Load
9 N
Locking
Lock-Out
Axial Load
400 N
Plunger Finish
Nickle-Plated
Final Nose Force
25 N
Initial Nose Force
9 N
Nose Shape
Ball
Includes Locking Plunger
Locking Plunger Included
Plunger Material
Stainless Steel
Mounting Hole Center-to-Center Distance
30 mm
Number of Mounting Holess
2
Body Finish
Blue Passivate
Plunger Material Grade
303
Retractability
Not Retractable
Plunger Projection
14 mm
Handle Material
Technopolymer
Nose Material
Stainless Steel
Measurement System
Metric
Item
Indexing Plungers - Plate Mount

Dimensions

Length
45 mm
Plunger Dia.
6 mm
Plate Width
40 mm
Knob Dia.
25 mm
Plunger Length
14 mm
Plate Length
18 mm
Flange Width
18 mm
Mounting Hole Size
4.3 mm
Plunger Width
6 mm
Overall Length
45 mm
Body Length
43.5 mm
Handle Diameter
25 mm
Body Diameter
10 mm
Flange Length
40 mm
Flange Thickness
4.5 mm

Description

Indexing Plungers with Pull Ring
