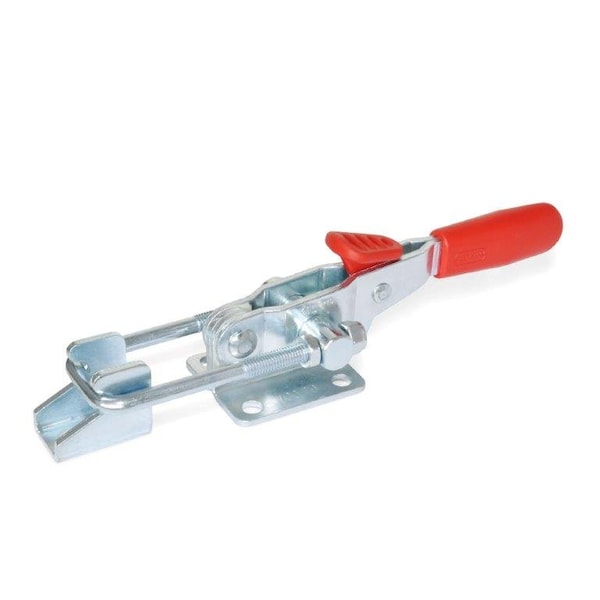

Latch Type Toggle Clamp, 360 lb
- Mfr # 851.3-160-T6
- Zoro # G4625810
product price:Â
$
29.99
/ea
Key Features
Mounting Holes Center to Center - Long Side
19 mm
Handle Color
Red
Includes Locking Handle
No
Overall Width
28 mm
Requires Articulation
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 851.3-160-T6
- Zoro #
- G4625810
- UPC #
- 664423629660
- Country of Origin
- Italy
- Mounting Holes Center to Center - Long Side
- 19 mm
- Handle Color
- Red
- Includes Locking Handle
- No
- Requires Articulation
- Yes
- Body Material
- Case-Hardened Steel
- Handle Orientation
- Horizontal
- Item
- Latch Type Toggle Clamp
- Includes Latch Plate
- Yes
- Mounting Holes Center to Center - Short Side
- 10 mm
- Includes
- U-Bolt Latch with Catch
- Application
- High Holding Capacities
- Base Mounting Style
- Flange
- Holding Capacity - Maximum
- 1,600 N
- Clamping Force
- 360 lb
- Hook Adjustment - Maximum
- 11 mm
- Hook Type
- Horizontal U
- Handle Material
- Plastic
- Drawing Movement Without Thumb Control
- 25 mm
Dimensions
- Overall Width
- 28 mm
- Length
- 99 mm
- Fastener Thread Size
- M4
- Overall Depth
- 31 mm
- Overall Length
- 99 mm
Description
Latch Type Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 1,600 N, Hook Adjustment - Maximum 11 mm, Drawing Movement Without Thumb Control 25 mm, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Horizontal U, Application High Holding Capacities, Body Material Case-Hardened Steel, Clamping Force 360 lb, Fastener Thread Size M4, Handle Color Red, Handle Material Plastic, Includes U-Bolt Latch with Catch
