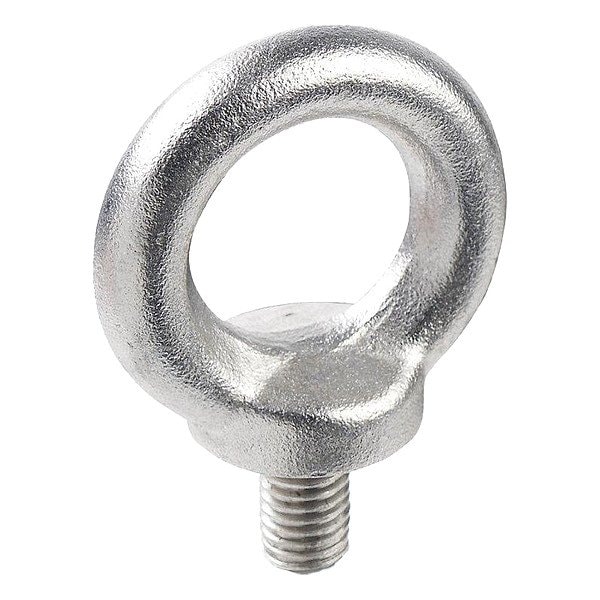

Lifting Eye Bolt With Shoulder, M8, 13 mm Shank, 20 mm ID, A2 Stainless Steel, Plain
- Mfr # 580-M8-NI
- Zoro # G313370071
product price:Â
$
7.99
/ea
Key Features
Shoulder Style
With Shoulder
System of Measurement
Metric
Thread Size
M8
Shank Length
13 mm
Eye Inside Diameter
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 580-M8-NI
- Zoro #
- G313370071
- UPC #
- 664423616226
- Country of Origin
- China
- Item
- Lifting Eye Bolt
- Shoulder Style
- With Shoulder
- System of Measurement
- Metric
- Material
- A2 Stainless Steel
- Finish
- Plain
- Application
- Lifting
- Includes Nut
- Nut Not Included
- Features
- The Counter Thread Must be of an Equal Length and the Base Material of an Equal Strength to that of the Bolt, The Eye Bolt Must be Fully Screwed-In, Achieving Firm Contact Between the Two Mating Faces
- Type
- Lifting Eye Bolt
- Eye Closure
- Closed
- Eyebolt Construction
- Forged
- Maximum Temperature
- 200 Degrees C
- Shank Type
- Externally Threaded
- Working Load Limit - Force
- 700 N
- Pack Size
- Small Pack
- Dimensional Standards
- DIN 580, RoHS Compliant
- Material Grade/Class
- 18-8
- RoHS Compliant
- RoHS Compliant
- Thread Style
- Fully Threaded
- Minimum Temperature
- -20 Degrees C
Dimensions
- Thread Size
- M8
- Shank Length
- 13 mm
- Eye Inside Diameter
- 20 mm
- Overall Length
- 49 mm
- Screw Size
- M8
- Eye Outside Diameter
- 36 mm
- Shoulder Diameter
- 20 mm
- Head Thickness
- 8 mm
- Wire Rope Length
- 49 mm
- Length
- 49 mm
- Fits Chest Size
- The Counter Thread Must be of an Equal Length and the Base Material of an Equal Strength to that of the Bolt, The Eye Bolt Must be Fully Screwed-In, Achieving Firm Contact Between the Two Mating Faces
Description
Lifting Eye Bolt, System of Measurement Metric, Finish Plain, Thread Size M8, Thread Length Not Applicable, Shank Length 13 mm, Overall Length 49 mm
