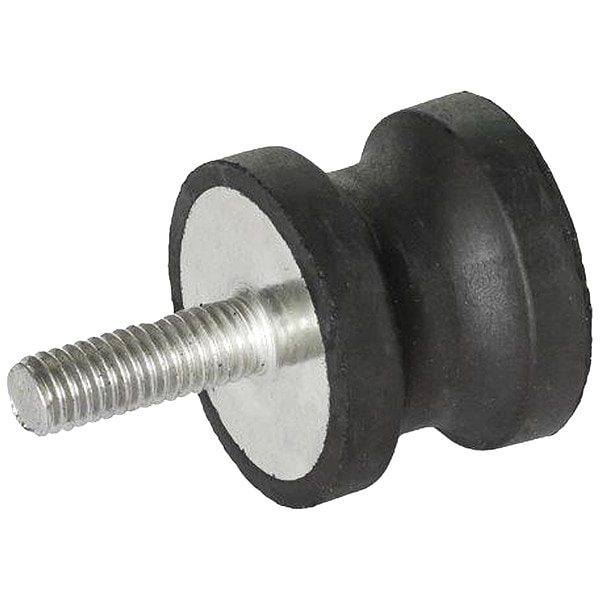

J.W. Winco Vibration-Isolating Mount, 0.59 in H 456.2-20-15-14-1/4-55 - main

Vibration-Isolating Mount, 0.59 in H

  • Mfr # 456.2-20-15-14-1/4-55

  • Zoro # G408259137

product price: $5.39
/ea
Sold in multiples of 2 for $10.78

Key Features

Height
0.59 in
Thread Size
1/4"-20
Mounting
Compressor; Pump
Resistant To
Abrasion; Wear
Maximum Load Downward Compression
80 lbf
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
456.2-20-15-14-1/4-55
Zoro #
G408259137
UPC #
-
Country of Origin
Hungary

Dimensions

Height
0.59 in
Thread Size
1/4"-20
Taper Diameter
0.55 in
Tap Depth
15/64 in
Overall Diameter
0.79 in
Stud Length
0.51 in
Overall Height
0.59 in

Details

Item
Vibration-Isolating Mount
Mounting
Compressor; Pump
Resistant To
Abrasion; Wear
Maximum Load Downward Compression
80 lbf
Maximum Load Sideways Shear
548 lbf
Shape
Hourglass
Isolator Material
Natural Rubber
Durometer
55A
Vibration Isolator Style
One Tapped Hole and One Threaded Stud
Stud or Tap Material
304 Stainless Steel
Maximum Operating Temperature
176 Degrees F
FDA Approved
Not FDA Approved
Load Sideways Shear - Maximum
548 lbf
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
176 Degrees F
Mounting Style
Compression
Load Downward Compression - Maximum
80.93 lbf

Description

Vibration-Isolating Mount, Vibration Isolator Style One Tapped Hole and One Threaded Stud, Maximum Load Downward Compression 80 lbf, Overall Diameter 0.79 in, Height 0.59 in, Stud Length 0.51 in, Maximum Load Sideways Shear 548 lbf, Thread Size 1/4 In.-20, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Compressor; Pump, Resistant To Abrasion; Wear, Shape Hourglass, Stud or Tap Material 304 Stainless Steel, Tap Depth 15/64 in
