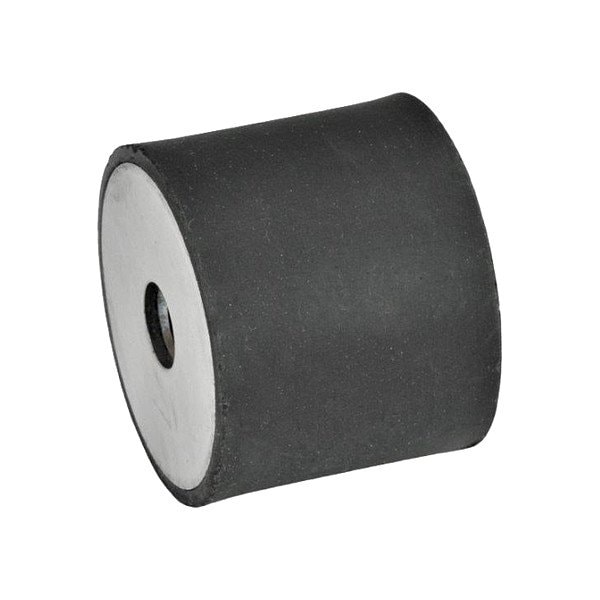

Vibration-Isolating Mount, 75 mm H
Mfr # 451-100-75-M16-EE-55
Zoro # G308258001
product price:Â $136.99
/ea
Free Shipping & Returns
Key Features
Height
2.95 in
Thread Size
M16
Mounting
Compressor; Motor; Pump
Resistant To
Abrasion; Wear
Overall Diameter
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 451-100-75-M16-EE-55
- Zoro #
- G308258001
- UPC #
- 664423473959
- Country of Origin
- Hungary
Dimensions
- Height
- 2.95 in
- Thread Size
- M16
- Overall Diameter
- 100 mm
- Tap Depth
- 14 mm
- Overall Height
- 75 mm
Details
- Item
- Vibration-Isolating Mount
- Mounting
- Compressor; Motor; Pump
- Resistant To
- Abrasion; Wear
- Shape
- Cylindrical
- Isolator Material
- Natural Rubber
- Stud or Tap Material
- 304 Stainless Steel
- Maximum Load Downward Compression
- 2,167 lbf
- Maximum Operating Temperature
- 176 Degrees F
- Vibration Isolator Style
- Two Tapped Holes
- Maximum Load Sideways Shear
- 2,941 lbf
- Durometer
- 55A
- Mounting Style
- Compression
- Load Downward Compression - Maximum
- 9,639.29 N
- Load Sideways Shear - Maximum
- 13,082.22 N
- Operating Temperature - Minimum
- -40 Degrees F
- Operating Temperature - Maximum
- 176 Degrees F
- FDA Approved
- Not FDA Approved
Description
Vibration-Isolating Mount, Vibration Isolator Style Two Tapped Holes, Maximum Load Downward Compression 2,167 lbf, Overall Diameter 100 mm, Height 2.95 in, Stud Length Not Applicable, Maximum Load Sideways Shear 2,941 lbf, Thread Size M16, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Compressor; Motor; Pump, Resistant To Abrasion; Wear, Shape Cylindrical, Stud or Tap Material 304 Stainless Steel, Tap Depth 14 mm
