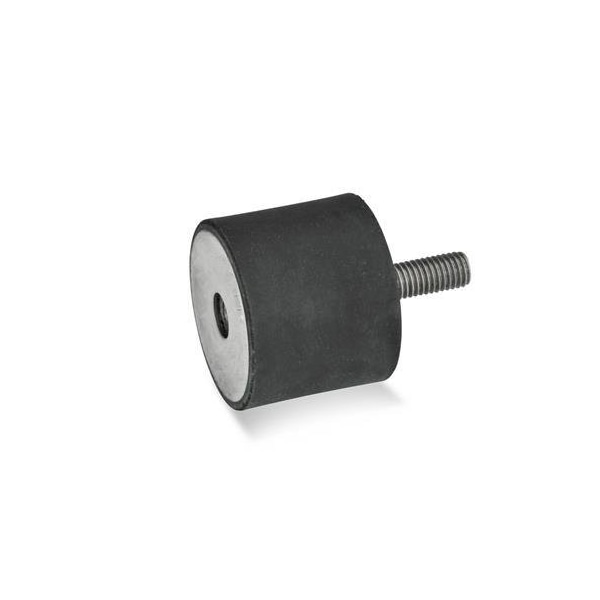

Vibration-Isolating Mount, 75 mm H
Mfr # 451-100-75-M16-ES-55
Zoro # G808258143
product price: $124.99
/ea
Free Shipping & Returns
Key Features
Height
2.95 in
Thread Size
M16
Resistant To
Abrasion; Wear
Mounting
Compressor; Motor; Pump
Durometer
55A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
451-100-75-M16-ES-55
Zoro #
G808258143
UPC #
664423473966
Country of Origin
Hungary
Dimensions
Height
2.95 in
Thread Size
M16
Overall Diameter
100 mm
Tap Depth
14 mm
Stud Length
41 mm
Overall Height
75 mm
Details
Item
Vibration-Isolating Mount
Resistant To
Abrasion; Wear
Mounting
Compressor; Motor; Pump
Durometer
55A
Maximum Load Sideways Shear
2,941 lbf
Maximum Load Downward Compression
2,167 lbf
Shape
Cylindrical
Stud or Tap Material
304 Stainless Steel
Maximum Operating Temperature
176 Degrees F
Isolator Material
Natural Rubber
Vibration Isolator Style
One Tapped Hole and One Threaded Stud
Mounting Style
Compression
Load Downward Compression - Maximum
9,639.29 N
FDA Approved
Not FDA Approved
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
176 Degrees F
Load Sideways Shear - Maximum
13,082.22 N
Description
Vibration-Isolating Mount, Vibration Isolator Style One Tapped Hole and One Threaded Stud, Maximum Load Downward Compression 2,167 lbf, Overall Diameter 100 mm, Height 2.95 in, Stud Length 41 mm, Maximum Load Sideways Shear 2,941 lbf, Thread Size M16, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Compressor; Motor; Pump, Resistant To Abrasion; Wear, Shape Cylindrical, Stud or Tap Material 304 Stainless Steel, Tap Depth 14 mm
