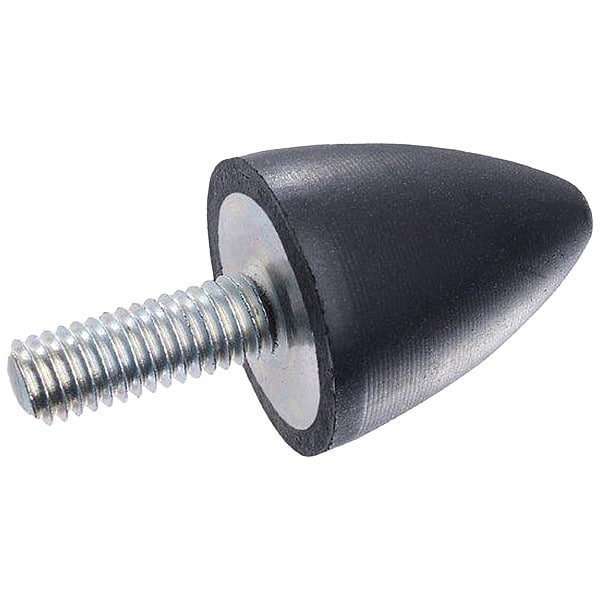

Vibration-Isolating Mount, 89 mm H
Mfr # 353-75-89-M12-S-55
Zoro # G708258199
product price:Â
$
29.19
/ea
Key Features
Height
3.5 in
Thread Size
M12
Mounting
Conveyor
Resistant To
Abrasion; Wear
Vibration Isolator Style
One Threaded Stud
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 353-75-89-M12-S-55
- Zoro #
- G708258199
- UPC #
- -
- Country of Origin
- Hungary
Dimensions
- Height
- 3.5 in
- Thread Size
- M12
- Overall Diameter
- 75 mm
- Stud Length
- 37 mm
- Overall Height
- 89 mm
Details
- Item
- Vibration-Isolating Mount
- Mounting
- Conveyor
- Resistant To
- Abrasion; Wear
- Vibration Isolator Style
- One Threaded Stud
- Maximum Load Downward Compression
- 441 lbf
- Shape
- Conical
- Maximum Load Sideways Shear
- 560 lbf
- Durometer
- 55A
- Isolator Material
- Natural Rubber
- Maximum Operating Temperature
- 176 Degrees F
- Stud or Tap Material
- Zinc-Plated Steel
- Operating Temperature - Maximum
- 176 Degrees F
- Load Sideways Shear - Maximum
- 98 N
- Operating Temperature - Minimum
- -40 Degrees F
- FDA Approved
- Not FDA Approved
- Load Downward Compression - Maximum
- 1,960 N
Description
Vibration-Isolating Mount, Vibration Isolator Style One Threaded Stud, Maximum Load Downward Compression 441 lbf, Overall Diameter 75 mm, Height 3.5 in, Stud Length 37 mm, Maximum Load Sideways Shear 560 lbf, Thread Size M12, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Conveyor, Resistant To Abrasion; Wear, Shape Conical, Stud or Tap Material Zinc-Plated Steel, Tap Depth Not Applicable
