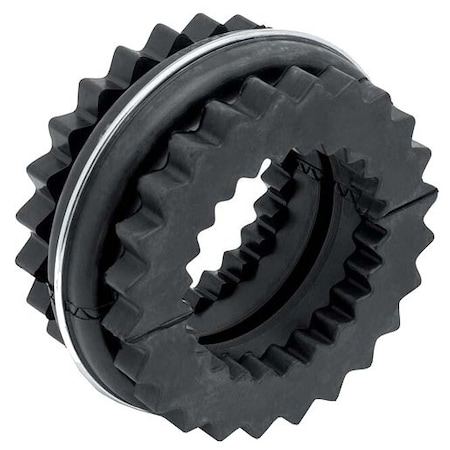

Sleeve Coupling Insert, 10 Coupling Size, 3,600 RPM Max Speed, 3,735 in-lb Max Torque, Inch, E
- Mfr # 10
- Zoro # G8512551
product price:Â
$
155.99
/ea
Free Shipping & Returns
Key Features
Flange Type - Sleeve Couplings
E
Coupling Size
10
Insert Width
3 7/16 in
Outside Diameter
7 1/16 in
Maximum Torque
3,735 in-lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 10
- Zoro #
- G8512551
- UPC #
- 698672660075
- Country of Origin
- United States
- Item
- Sleeve Coupling Insert
- Flange Type - Sleeve Couplings
- E
- Insert Design
- Two-Piece with Retaining Ring
- Insert Material
- EPDM
- Maximum Torque
- 3,735 in-lb
- Maximum Speed
- 3,600 RPM
- Angular Misalignment
- 1 Degrees
- Parallel Misalignment
- 0.025 in
- Operating Temp.
- -30 Degrees to 275 Degrees F
- HP Rating @ 1800 RPM
- 106.67 hp
- HP Rating @ 3600 RPM
- 213.34 hp
- Body Style
- 10E
- HP Rating @ 1200 RPM
- 71.11 hp
- Application
- Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
- Maximum Operating Temperature
- 275 Degrees F
- System of Measurement
- Inch
- Weight
- 3.2 lb
- Minimum Operating Temperature
- -30 Degrees F
- Features
- 4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
- Torsional Stiffness
- 10,980 in-lb/rad
- Resistance Properties
- Chemical Resistant, Oil Resistant
- Horsepower @ 100 RPM
- 5.9 hp
- Horsepower @ RPM
- 107 hp @1,800 RPM, 213 hp @3,600 RPM
- For Misalignment Type
- Angular, Parallel
Description
Sleeve Coupling Insert, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 3,735 in-lb, Outside Diameter 7 1/16 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 5.9 hp, Insert Material EPDM, Insert Width 3 7/16 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 10,980 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F
