  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

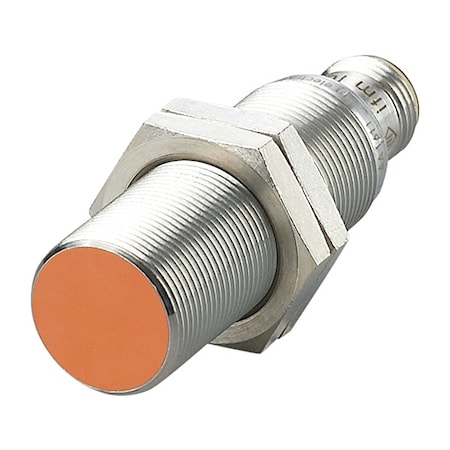

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded IGS232 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # IGS232

  • Zoro # G0528285

product price: $39.19
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
400 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IGS232
Zoro #
G0528285
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M18 x 1 / L = 60
Overall Height
60 mm
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
400 Hz
Description/Special Features
Overload And Short Protection
Max. Current Load
100mA
IP Rating
IP65, IP66, IP67, IP68, IP69K
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-14 Na, EN 60068-2-27, EN 60068-2-52 Kb, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A001
Includes
(2) Lock Nuts
Operating Temp. Range
-40 Degrees to 185 Degrees F
Electrical Connection
M12
Housing
threaded type
Reverse polarity protection
yes
Continuous shock resistance
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Increased sensing range
yes
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Switch point drift [% of Sr]
-10...10
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Shock resistance
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Salt spray test
EN 60068-2-52 Kb severity level 5 (4 test cycles)
Overload protection
yes
Items supplied
lock nuts: 2
Protection
IP 65; IP 66; IP 67; IP 68; IP 69K
Max. voltage drop switching output DC [V]
2.5
Ambient temperature [°C]
-40...85
Embedded software included
yes
Switching frequency DC [Hz]
400
Electrical design
PNP
Fast temperature change
EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A001 File number UL E174191
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Operating distance [mm]
0...6.48
Thread designation
M18 x 1
Vibration resistance
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Real sensing range Sr [mm]
8± 10 %
Protection class
III
Display
switching status 4 x LED, yellow
MTTF [years]
1690
Application
Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
Current consumption [mA]
< 10
Operating voltage [V]
10...30 DC
Special feature
Gold-plated contacts; Increased sensing range
Hysteresis [% of Sr]
3...15
Sensing range [mm]
8
Permanent current rating of switching output DC [mA]
100
Mounting
flush mountable
Short-circuit protection
yes
Ambient temperature [°C]
-40...85
Body Material
Brass
Sensing Face Shielding
Shielded
Features
Safe Detection
Number of Pins
4
Operating Temperature - Minimum
-40 Degrees F
AC Voltage Rating
Not Rated
Style
Cylindrical, Inductive
Output Circuit Contact Form
NO
Output Circuit Voltage - Maximum
2.5 V DC
Sensing Distance - Maximum
8 mm
Electrical Installation Type
Direct Connector
Output Circuit Number of Wires
3
DC Voltage Rating
10-30V DC
Body Finish
Bronze Coated
Operating Temperature - Maximum
185 Degrees F
Output Circuit Type
PNP
Includes Indicator Lights
Indicator Lights Included
Output Circuit Current - Maximum
100 mA
Switching Frequency
400 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
