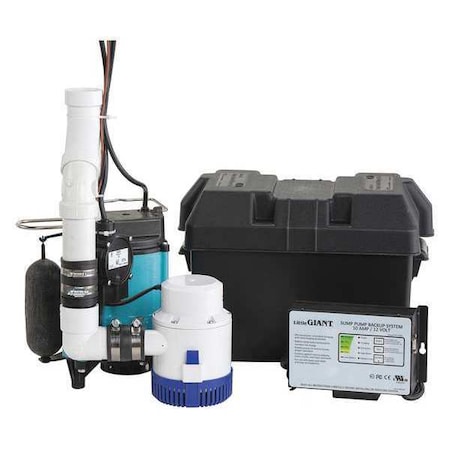

Battery Back Up Combo System, 28 Head ft.

Mfr # 506411
Zoro # G4447460

994.99

Free Shipping & Returns

Key Features

1/3 (Primary)

Body Material

Cast Iron (Primary); Plastic (Secondary)

Switch Actuation

Diaphragm

Flow Rate @ 10 Ft. of Head

50.0 gpm (Primary); 20.0 gpm (Secondary)

Max. Head

28.0 ft (Primary); 20.0 ft (Secondary)

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 506411
Zoro #: G4447460
UPC #: 010121148123
Country of Origin: United States

Dimensions

Cord Length: 10 ft
Width: 18"
Height: 20"
Length: 24"
Max. Diameter Solids: 1/2 in
Max. Dia. Solids (In.) - Back-Up: 1/8
Primary Pump Width at Widest Point: 18 in
Secondary Pump Maximum Solids Diameter: 1/8 in
Primary Pump Maximum Solids Diameter: 1/2 in
Primary Pump Overall Height: 20 in
Overall Height: 20 in
Discharge Dia.: 1 1/2 in
Width at Widest Point: 18 in
Discharge Diameter: 1 1/2 in
Primary Pump Solids Diameter - Maximum: 1/2 in
Secondary Pump Solids Diameter - Maximum: 1/8 in

Details

HP: 1/3 (Primary)
Body Material: Cast Iron (Primary); Plastic (Secondary)
Switch Actuation: Diaphragm
Flow Rate @ 10 Ft. of Head: 50.0 gpm (Primary); 20.0 gpm (Secondary)
Max. Head: 28.0 ft (Primary); 20.0 ft (Secondary)
Voltage - Pumps: 120VAC
Off Point (In.): 2 to 5 (Primary)
Max. Head - Pumps: 28 ft.
GPH of Water @ 0 Ft. of Head: 3300 (Primary), 2520 (Secondary)
Amps: 5.0 A
GPH of Water @ 10 Ft. of Head: 3000
Discharge NPT: 1-1/2" F
GPH of Water @ 15 Ft. of Head: 2700
Base Material: Polypropylene
Max. Head (Ft.) - Back-Up: 20
GPH of Water @ 5 Ft. of Head: 3180 (Primary), 1740 (Secondary)
For Use With: Sump Pits Above 18" Diameter and 18" Deep
Voltage: 115
Item - Sump Pumps: Sump/Battery Back-Up Combination System
Pump Body Material: Cast Iron (Primary), Plastic (Secondary)
Duty: Continuous (Primary), Continuous (Secondary)
Switch Type: Vertical Float
Item: Sump/Battery Back-Up System
Max. Flow (GPH) - Back-Up: 2520
Max. Flow (GPH) - Pumps: 2500
Voltage - Back-Up: 12VDC
Max. Flow (GPH): 2500
On Point: 7 in
Amps - Back-Up: 14.00
Off Point: 2 in to 5 in
Motor Type: PSC (Primary), Brush Type DC (Secondary)
Impeller Material - Pumps: Nylon
Shaft Seal: Carbon Ceramic
Alarm Included: Yes
Amps - Pumps: 5.00
Switch Type - Pumps: Vertical
On Point (In.): 7-10
Impeller Material: Nylon (Primary)
12VDC Battery Charger: 10A
Max. Liquid Temp.: 120 Degrees F
Includes: Battery Charger, Check Valve
Shaft Seal Material - Pumps: Carbon, Ceramic
GPM of Water @ 5 Ft. of Head: 53 (Primary), 29 (Secondary)
Primary Pump Flow Rate @ 15 Ft. of Head: 42.0 gpm
Secondary Pump Amps: 14
Secondary Pump Flow Rate @ 5 Ft. of Head: 29.0 gpm
Secondary Pump Duty Cycle: Continuous
Primary Pump Maximum Head: 28 ft
Secondary Pump Body Material: Plastic
Secondary Pump Flow Rate @ 10 Ft. of Head: 20.0 gpm
Flow Rate @ 15 Ft. of Head: 42.0 gpm (Primary)
Duty Cycle: Continuous; Continuous
Flow Rate @ 20 Ft. of Head: 34.0 gpm (Primary)
Primary Pump Flow Rate @ 10 Ft. of Head: 50.0 gpm
Switch Electrical Connection: Integral
Primary Pump Impeller Material: Nylon
Primary Pump Rated Voltage: 115V AC
Primary Pump HP: 1/3 hp
Discharge Standard: NPT
Discharge Gender: Female
Discharge: 1-1/2 in FNPT
Primary Pump Duty Cycle: Continuous
Secondary Pump Maximum Head: 20 ft
Secondary Pump Rated Voltage: 12V DC
Flow Rate @ 5 Ft. of Head: 53.0 gpm (Primary); 29.0 gpm (Secondary)
Primary Pump Shaft Seal Material: Carbon/Ceramic
Primary Pump Flow Rate @ 20 Ft. of Head: 34.0 gpm
Primary Pump Flow Rate @ 5 Ft. of Head: 53.0 gpm
Primary Pump Amps: 5.0
Primary Pump Body Material: Cast Iron
Power Source: Corded Electric
Standards: CSAc,us (Primary)
Primary Pump Switch Electrical Connection: Piggyback
Liquid Temperature - Maximum: 120 Degrees F
Secondary Pump Flow Rate @ 10 ft of Head: 20 gpm
Includes Alarm: Alarm Included
Secondary Pump Switch Actuation: Diaphragm
For Media Type: Clear Water
Primary Pump Flow Rate @ 10 ft of Head: 50 gpm
Feet of Head - Maximum: 28.0 ft (Primary); 20.0 ft (Secondary)
Primary Pump Current: 5 A
Secondary Pump Current: 14 A
Series: SPBS-10HF-6
Alerts Indicated: High Water
Primary Pump Horsepower: 1/3 hp
Alert Output: Audio
Power Source - TS Only: Corded Electric
Power Source - old: Corded Electric

Description

Sump/Battery Back-Up System

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
