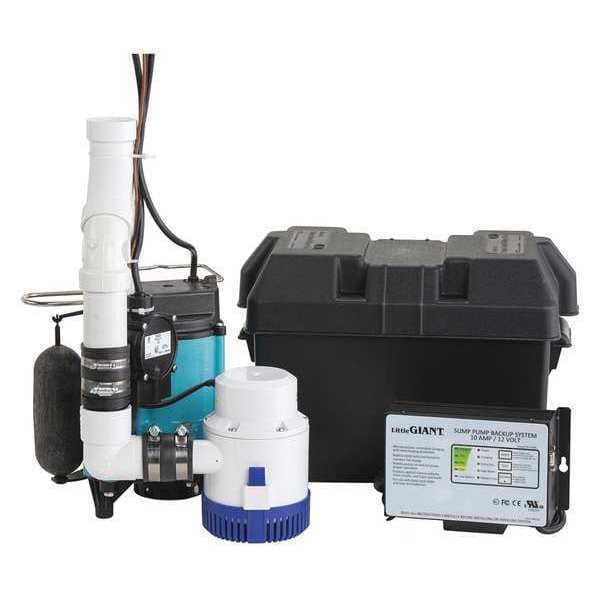

Little Giant Pump Battery Back Up Combo System, 28 Head ft. 506411 - main

Battery Back Up Combo System, 28 Head ft.

  • Mfr # 506411

  • Zoro # G4447460

product price: $982.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 (Primary)
Body Material
Cast Iron (Primary); Plastic (Secondary)
Switch Actuation
Diaphragm
Flow Rate @ 10 Ft. of Head
50.0 gpm (Primary); 20.0 gpm (Secondary)
Max. Head
28.0 ft (Primary); 20.0 ft (Secondary)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
506411
Zoro #
G4447460
UPC #
010121148123
Country of Origin
United States

Dimensions

Cord Length
10 ft
Width
18"
Height
20"
Length
24"
Max. Diameter Solids
1/2 in
Max. Dia. Solids (In.) - Back-Up
1/8
Primary Pump Width at Widest Point
18 in
Secondary Pump Maximum Solids Diameter
1/8 in
Primary Pump Maximum Solids Diameter
1/2 in
Primary Pump Overall Height
20 in
Overall Height
20 in
Discharge Dia.
1 1/2 in
Width at Widest Point
18 in
Discharge Diameter
1 1/2 in
Primary Pump Solids Diameter - Maximum
1/2 in
Secondary Pump Solids Diameter - Maximum
1/8 in

Details

HP
1/3 (Primary)
Body Material
Cast Iron (Primary); Plastic (Secondary)
Switch Actuation
Diaphragm
Flow Rate @ 10 Ft. of Head
50.0 gpm (Primary); 20.0 gpm (Secondary)
Max. Head
28.0 ft (Primary); 20.0 ft (Secondary)
Voltage - Pumps
120VAC
Off Point (In.)
2 to 5 (Primary)
Max. Head - Pumps
28 ft.
GPH of Water @ 0 Ft. of Head
3300 (Primary), 2520 (Secondary)
Amps
5.0 A
GPH of Water @ 10 Ft. of Head
3000
Discharge NPT
1-1/2" F
GPH of Water @ 15 Ft. of Head
2700
Base Material
Polypropylene
Max. Head (Ft.) - Back-Up
20
GPH of Water @ 5 Ft. of Head
3180 (Primary), 1740 (Secondary)
For Use With
Sump Pits Above 18" Diameter and 18" Deep
Voltage
115
Item - Sump Pumps
Sump/Battery Back-Up Combination System
Pump Body Material
Cast Iron (Primary), Plastic (Secondary)
Duty
Continuous (Primary), Continuous (Secondary)
Switch Type
Vertical Float
Item
Sump/Battery Back-Up System
Max. Flow (GPH) - Back-Up
2520
Max. Flow (GPH) - Pumps
2500
Voltage - Back-Up
12VDC
Max. Flow (GPH)
2500
On Point
7 in
Amps - Back-Up
14.00
Off Point
2 in to 5 in
Motor Type
PSC (Primary), Brush Type DC (Secondary)
Impeller Material - Pumps
Nylon
Shaft Seal
Carbon Ceramic
Alarm Included
Yes
Amps - Pumps
5.00
Switch Type - Pumps
Vertical
On Point (In.)
7-10
Impeller Material
Nylon (Primary)
12VDC Battery Charger
10A
Max. Liquid Temp.
120 Degrees F
Includes
Battery Charger, Check Valve
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 5 Ft. of Head
53 (Primary), 29 (Secondary)
Primary Pump Flow Rate @ 15 Ft. of Head
42.0 gpm
Secondary Pump Amps
14
Secondary Pump Flow Rate @ 5 Ft. of Head
29.0 gpm
Secondary Pump Duty Cycle
Continuous
Primary Pump Maximum Head
28 ft
Secondary Pump Body Material
Plastic
Secondary Pump Flow Rate @ 10 Ft. of Head
20.0 gpm
Flow Rate @ 15 Ft. of Head
42.0 gpm (Primary)
Duty Cycle
Continuous; Continuous
Flow Rate @ 20 Ft. of Head
34.0 gpm (Primary)
Primary Pump Flow Rate @ 10 Ft. of Head
50.0 gpm
Switch Electrical Connection
Integral
Primary Pump Impeller Material
Nylon
Primary Pump Rated Voltage
115V AC
Primary Pump HP
1/3 hp
Discharge Standard
NPT
Discharge Gender
Female
Discharge
1-1/2 in FNPT
Primary Pump Duty Cycle
Continuous
Secondary Pump Maximum Head
20 ft
Secondary Pump Rated Voltage
12V DC
Flow Rate @ 5 Ft. of Head
53.0 gpm (Primary); 29.0 gpm (Secondary)
Primary Pump Shaft Seal Material
Carbon/Ceramic
Primary Pump Flow Rate @ 20 Ft. of Head
34.0 gpm
Primary Pump Flow Rate @ 5 Ft. of Head
53.0 gpm
Primary Pump Amps
5.0
Primary Pump Body Material
Cast Iron
Power Source
Corded Electric
Standards
CSAc,us (Primary)
Primary Pump Switch Electrical Connection
Piggyback
Liquid Temperature - Maximum
120 Degrees F
Secondary Pump Flow Rate @ 10 ft of Head
20 gpm
Includes Alarm
Alarm Included
Secondary Pump Switch Actuation
Diaphragm
For Media Type
Clear Water
Primary Pump Flow Rate @ 10 ft of Head
50 gpm
Feet of Head - Maximum
28.0 ft (Primary); 20.0 ft (Secondary)
Primary Pump Current
5 A
Secondary Pump Current
14 A
Series
SPBS-10HF-6
Alerts Indicated
High Water
Primary Pump Horsepower
1/3 hp
Alert Output
Audio

Description

Sump/Battery Back-Up System

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
