Shop FUNCTIONAL DEVICES-RIB

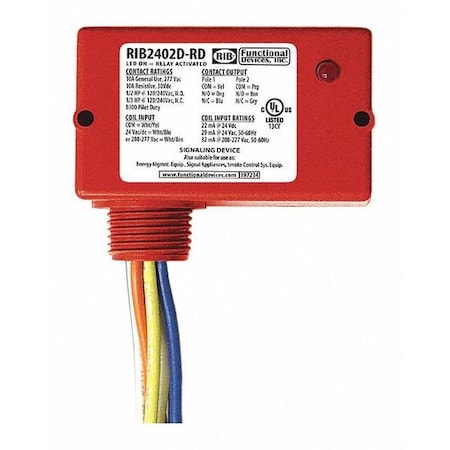

Enclosed Pre-Wired Relay, 10A at 30VDC, DPDT

  • Mfr # RIB2402D

  • Zoro # G0844024

product price:  $44.19
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Contact Form - Relay
DPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIB2402D
Zoro #
G0844024
UPC #
-
Country of Origin
United States

Dimensions

Nipple Size
0.50 in NPT
Body Width - Relay
2.8 in
Body Height - Relay
1.7 in
Body Depth - Relay
1.5 in
Dimensions
1.7"H x 2.8"W x 1.5"D
Lead Length
16 in
Overall Height - Relay
1.7 in
Body Height
2.8 in
Overall Depth
1.5 in
Body Width
1.7 in
Body Depth
1.5 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
208 to 277V AC, 24V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Contact Form - Relay
DPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.84W, 14.4 to 19.1VA
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Hz
50/60
Application
Pilot
Indicator Type
LED
Response Time
8 msec
NEMA Enclosure Type
1
Item
Enclosed Pre-Wired Relay
HP @ 240V
1/3 hp, 1/2 hp
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
Contact Material
Silver Nickel
Hz - Electrical
50 Hz, 60 Hz
Contact Amp Rating (Resistive)
10A @ 30VDC
HP @ 120V
1/3 hp, 1/2 hp
Contact Form
DPDT
Horsepower @ 240V AC
1/3 hp
Operating Current
10 A at 208 to 277V AC, 10 A at 24V AC/DC
Contact Rating (DC)
10 A @ 30V
Sealing
Enclosed
Mechanical Operating Durability
10,000,000
Frequency
50/60 Hz
Mounting Style
Surface
Contact Rating (AC)
10 A @ 277V
Minimum Operating Temperature
-30 Degrees F
NEMA Enclosure Rating
1
Horsepower @ 120V AC
1/3 hp
Maximum Operating Temperature
140 Degrees F
Coil Voltage
24V AC/DC/208-277V AC
Current Rating
10 A
Input Voltage
208 to 277V AC/DC, 24V AC
Status Indicator
LED Indicator
For Use With
Exhaust Fans, Motors, Vacuums
Gold Flash
No
Contact Ratings
10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120VA) 5A Max
Operating Temperature
-30 to 140° F
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Coil Current
24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 36 mA @ 208-277 Vac (RIB2402D) 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc
Expected Relay Life
10 million cycles minimum mechanical
Override Switch
No
Wires
16", 600V Rated
Coil Voltage Input
24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIB2402D) Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc
Humidity Range
5 to 95% (noncondensing)
Operate Time
8ms
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
Relay Status
LED On - Activated
Approvals
UL Listed, C-UL, CE, UL916 (All models)

Description

Enclosed Pre-Wired Relay, Coil Voltage 24V AC/DC/208-277V AC, Contact Form DPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Input Voltage 208 to 277V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 2.8 in, Body Width 1.7 in, Contact Material Silver Nickel, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/3 hp
