Shop FUNCTIONAL DEVICES-RIB

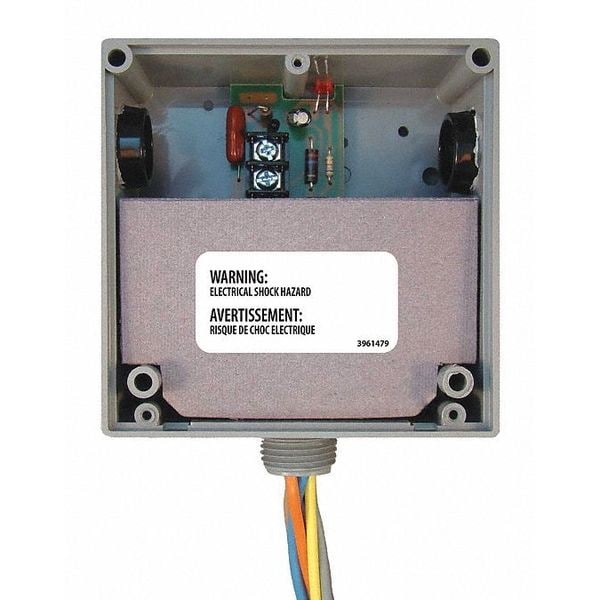

Enclosed T-Style Relay, Hi/Low Separation

  • Mfr # RIBT2401D
  • Zoro # G3226157
product price:
$
63.45
/ea

Key Features

Width
4
Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple
Height
1.8
Wires
16", 600V Rated
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RIBT2401D
Zoro #
G3226157
UPC #
-
Country of Origin
United States
Item
Enclosed T-Style Relay,Hi/Low Separation
Wires
16", 600V Rated
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
Override Switch
No
Operate Time
8ms
Operating Temperature
-30 to 140° F
Humidity Range
5 to 95% (noncondensing)
Coil Voltage Input
24 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc
Gold Flash
No
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Relay Status
LED On - Activated
Expected Relay Life
10 million cycles minimum mechanical
Coil Current
24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 31 mA @ 120 Vac 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Contact Ratings
10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120VA) 5A Max

Description

Pilot Relay, 10 Amp DPDT, 24 Vac/dc/120 Vac Coil, Hi/Lo Voltage Separation, NEMA 1 Housing
