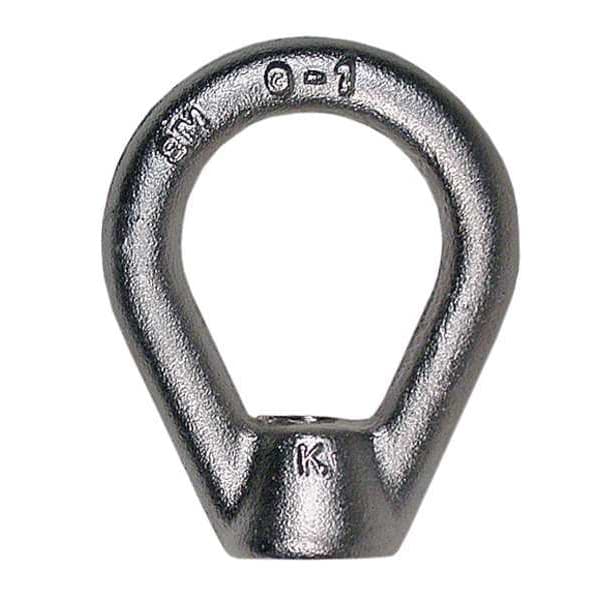

Oval Eye Nut, 3/8"-16 Thread Size, 5/8 in Thread Lg, 316 Stainless Steel, Plain
Mfr # EN-3-316SS
Zoro # G1104187
CAD Available
product price: $20.55
/eaKey Features
CAD Drawing
Thread Length
5/8 in
Eye Shape
Oval
Material
316 Stainless Steel
Material Grade/Class
Not Graded
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EN-3-316SS
Zoro #
G1104187
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
3/8"-16
Thread Length
5/8 in
Eye Inside Diameter
1 1/4 in
Eye Outside Diameter
2 in
Overall Height
2-1/2 in
Eye Thickness
0.375 in
Base Diameter
0.875 in
Base Height
0.625 in
Eye Inside Dia.
1 1/4 in
Eye Outside Dia.
2 in
Eye inside Diameter
1-1/4 in
Description
Eye Nut, Finish Plain, Material Stainless Steel, Thread Size 3/8 In.-16, Thread Length 5/8 in, Eye Shape Oval, Eye Inside Diameter 1 1/4 in, Eye Outside Diameter 2 in, Overall Height 2 1/2 in, Working Load Limit 2,700 lb, System of Measurement Inch, Base Diameter 0.88 in, Base Height 0.63 in, Bore Type Threaded Tapped, Eye Thickness 0.38 in, Material Fabrication Drop Forged, Material Grade/Class 316, Material Quality Standards ASTM A105, Pack Size Small Pack
