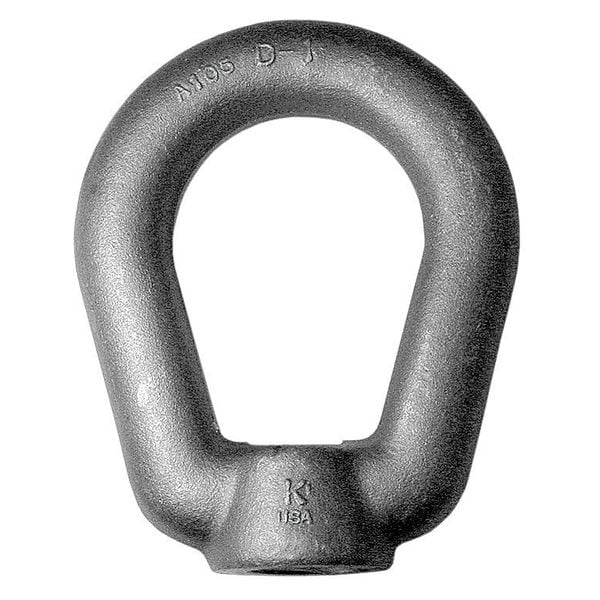

Oval Eye Nut, 7/8"-9 Thread Size, 1 in Thread Lg, Steel, Black Oxide
Mfr # EN-9
Zoro # G2826257
CAD Available
product price: $24.15
/eaKey Features
CAD Drawing
Thread Size
7/8"-9
Thread Length
1 in
Eye Shape
Oval
Material
Steel
Material Grade/Class
Not Graded
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EN-9
Zoro #
G2826257
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
7/8"-9
Thread Length
1 in
Eye Inside Diameter
2 1/4 in
Eye Outside Diameter
4 in
Overall Height
5 in
Eye Thickness
0.875 in
Base Diameter
1.563 in
Base Height
1 in
Eye inside Diameter
2-1/4 in
Eye Inside Dia.
2 1/4 in
Eye Outside Dia.
4 in
Description
Eye Nut, Finish Black Oxide, Material Steel, Thread Size 7/8 In.-9, Thread Length 1 in, Eye Shape Oval, Eye Inside Diameter 2 1/4 in, Eye Outside Diameter 4 in, Overall Height 5 in, Working Load Limit 10,000 lb, System of Measurement Inch, Base Diameter 1.56 in, Base Height 1 in, Bore Type Threaded Tapped, Eye Thickness 0.88 in, Material Fabrication Drop Forged, Material Grade/Class Not Graded, Material Quality Standards ASTM A105, Pack Size Small Pack
