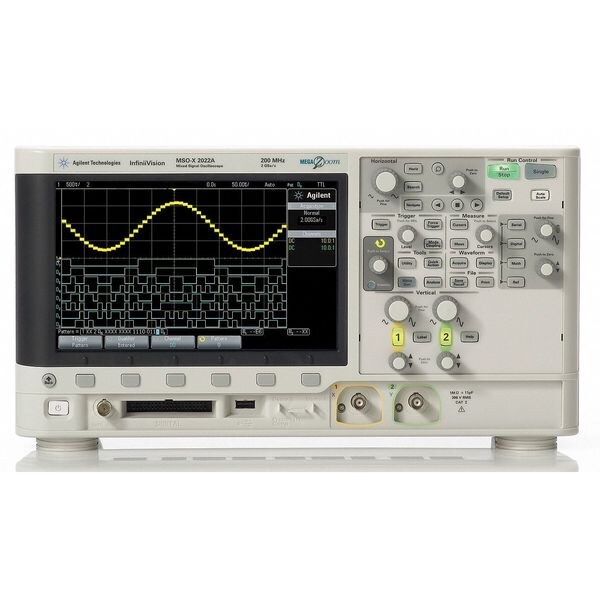

Oscilloscope, 2+8-channel, 200 MHz (Discontinued)
- Mfr # MSOX2022A
- Zoro # G3687652
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MSOX2022A
Zoro #
G3687652
UPC #
013088382036
Country of Origin
Malaysia
Dimensions
Bandwidth (MHz)
200MHz
Digital Storage Bandwidth
64M Internal, USB Stick Limit For External Storage
Real Time Bandwidth (MHz)
200MHz
Manufacturers Warranty Length
3 yr
Memory Size
1Mpts
Details
Item
Mixed Signal Oscilloscope
Type
Bench
Includes
1 Passive Probe Per Analog Channel, Digital Cable For MSO Channels
Sweep Rate Real/Storage
2 ns/div to 50 s/div
Display
8.5 inch WVGA
Sampling Rate
1GSa/s Per Channel
Features
Analog Oscilloscope, Digital Timing Analyzer, Integrated Function Generator, Mask Testing and Segmented Memory. FFT, Automatic Measurements
Max. Voltage
400
Vertical Operating Modes
Normal, Peak Detect, Averaging, High Resolution, Segmented
Horizontal Resolution
2.5 pS
Triggering Mode
Edge, Pulse Width, Pattern, Video
Sweep Magnification
+-8 Divisions From Center Screen
Vertical Resolution
18 bits
Trigger Sensitivity Int./Ext.
10mV/div internal/ 200mV external
Rise Time
1.75 ns
Triggering Source
Analog channels, digital channels, External, Line WaveGen
Sweep Speed Accuracy
25ppm +- 5 ppm Per Year Aging
Max./Min. Sweep Speed
2 nS/div to 50 s/div
Description
Mixed Signal Oscilloscope, Bench, Bandwidth (MHz) 200MHz, Rise Time 1.75 ns, Max. Voltage 400, Max./Min. Sweep Speed 2 nS/div to 50 s/div, Trigger Sensitivity Int./Ext. 10mV/div internal/ 200mV external, Vertical Operating Modes Normal, Peak Detect, Averaging, High Resolution, Segmented, Sweep Speed Accuracy 25ppm +- 5 ppm Per Year Aging, +-8 Divisions From Center Screen Sweep Magnification, Triggering Mode Edge, Pulse Width, Pattern, Video
