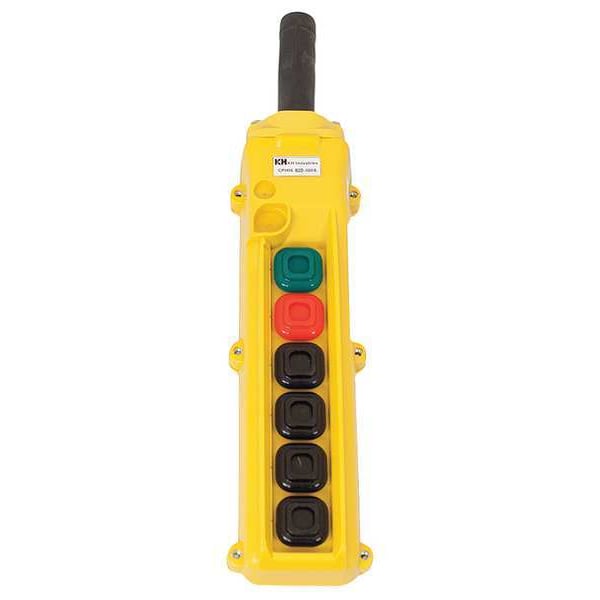

Kh Industries Pendant Station, 6, Push Button, NO, NC CPH06-B2D-000A - main

Pendant Station, 6, Push Button, NO, NC

  • Mfr # CPH06-B2D-000A

  • Zoro # G8564927

product price: $532.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPH06-B2D-000A
Zoro #
G8564927
UPC #
-
Country of Origin
China

Dimensions

Depth
1.5 in
Width
3.25 in
Height
11 in
Overall Width
3.25 in
Overall Depth
1.5 in
Overall Height
11 in

Details

Item
Pendant Control Station
Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
6
NEMA Rating
4x
Hub Style
Dead-End
Housing Color
Yellow
Contact Rating
0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC
Standards
cUL, UL Listed
Action
Maintained/Maintained/Momentary/Momentary/Momentary/Momentary
Hub
33/64 in to 41/64 in
Mechanical Interlock
Yes
Number of Speeds
2
Includes
Cable Bushing(s)
Housing Material
ABS
Enclosure Color
Yellow
IP Rating
IP65
Enclosure Material
Thermoplastic
Operator Color
Yellow
Switch Type
Buttons 1 and 2: Maintained On/Off, Buttons 3, 4, 5, 6: Two Speed Momentary with Interlock
Product Type
Pendant Control Station
Resistance Properties
Corrosion Resistant, Shock Resistant, Vibration Resistant
Operator Configuration
(6) Push Buttons
DC Contact Rating
0.4 A @ 120 V, 2 A @ 24 V
NEMA Enclosure Rating
4, 4X
Maintained Action Release
Push/Pull
AC Contact Rating
5 A @ 125/240 V
Includes Mechanical Interlock
Mechanical Interlock Included
Hazardous Location Specification
Not Rated
Speed
Two
Cable Bushing
.52-.65

Description

Pendant Control Station, Number of Operators 6, Number of Pilot Lights 0, Legend On/Off, Type of Operator Push Button, Action Maintained/Maintained/Momentary/Momentary/Momentary/Momentary, Operator Color Yellow, Contact Form 1NO/1NC, Mechanical Interlock Yes, NEMA Rating 4X, Contact Rating 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC, IP Rating IP65, Hub 33/64 in to 41/64 in, Height 11 in, Width 3.25 in, Depth 1.5 in, Enclosure Material Thermoplastic, Enclosure Color Yellow
