  15. Pendant Station, 8, Push Button, NO, NC

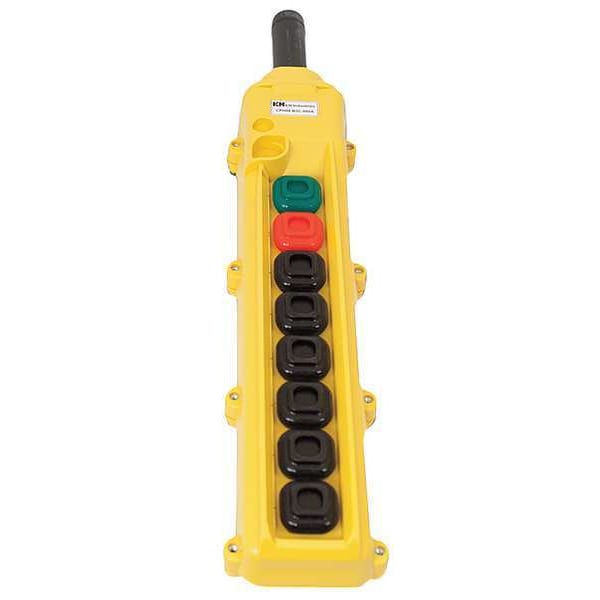

Kh Industries Pendant Station, 8, Push Button, NO, NC CPH08-B3C-000A - main

Pendant Station, 8, Push Button, NO, NC

  • Mfr # CPH08-B3C-000A

  • Zoro # G8564963

product price: $738.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPH08-B3C-000A
Zoro #
G8564963
UPC #
-
Country of Origin
China

Dimensions

Depth
1.5 in
Width
3.25 in
Height
13.4 in
Overall Width
3.25 in
Overall Height
13.4 in
Overall Depth
1.5 in

Details

Item
Pendant Control Station
Contact Form
1NO/1NC
Legend
On/Off
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
8
NEMA Rating
4x
Hub Style
Dead-End
Housing Color
Yellow
Standards
cUL, UL Listed
Contact Rating
0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC
Action
Maintained/Maintained/Momentary/Momentary/Momentary/Momentary/Momentary/Momentary
Hub
33/64 in to 41/64 in
Mechanical Interlock
Yes
Number of Speeds
1
Housing Material
ABS
Includes
Cable Bushing(s)
Enclosure Color
Yellow
Enclosure Material
Thermoplastic
Switch Type
Buttons 1 and 2: Maintained On/Off; Buttons 3 – 8: Single Speed Momentary with Interlock
Operator Color
Yellow
IP Rating
IP65
Product Type
Pendant Control Station
DC Contact Rating
0.4 A @ 120 V, 2 A @ 24 V
Hazardous Location Specification
Not Rated
AC Contact Rating
5 A @ 125/240 V
NEMA Enclosure Rating
4, 4X
Operator Configuration
(8) Push Buttons
Resistance Properties
Corrosion Resistant, Shock Resistant, Vibration Resistant
Includes Mechanical Interlock
Mechanical Interlock Included
Maintained Action Release
Push/Pull
Cable Bushing
.52-.65
Speed
Single

Description

Pendant Control Station, Number of Operators 8, Number of Pilot Lights 0, Legend On/Off, Type of Operator Push Button, Action Maintained/Maintained/Momentary/Momentary/Momentary/Momentary/Momentary/Momentary, Operator Color Yellow, Contact Form 1NO/1NC, Mechanical Interlock Yes, NEMA Rating 4X, Contact Rating 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC, IP Rating IP65, Hub 33/64 in to 41/64 in, Height 13.4 in, Width 3.25 in, Depth 1.5 in, Enclosure Material Thermoplastic
