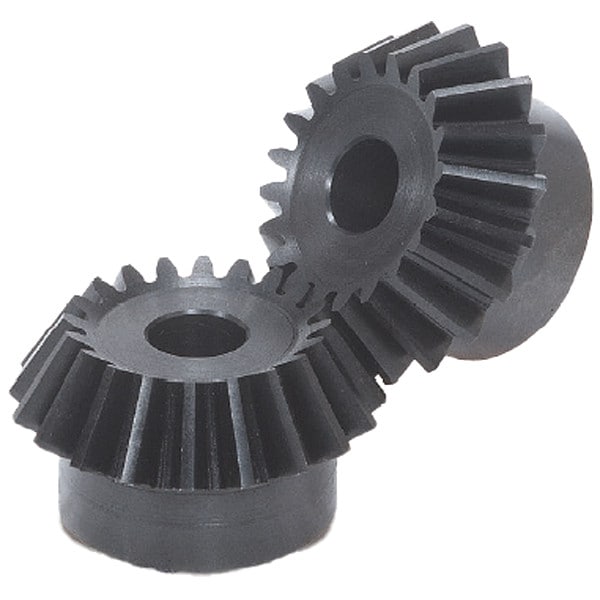

Angular Miter Gears
Mfr # SAM2.5-20045
Zoro # G304841733
product price:Â $70.59
/eaKey Features
Number of Teeth
20
Material
Carbon Steel
Overall Length
31.92 mm
For Shaft Angle
45 Degrees
Tooth Form
Straight
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SAM2.5-20045
- Zoro #
- G304841733
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 31.92 mm
- Bore Diameter
- 12 mm
- Face Width
- 18 mm
- Outside Diameter
- 54.62 mm
- Hub Diameter
- 40 mm
- Pitch Diameter
- 50 mm
- Bore Diameter Tolerance
- H7
- Wire Rope Length
- 31.92 mm
Details
- Item
- Angular Miter Gear
- Number of Teeth
- 20
- Material
- Carbon Steel
- For Shaft Angle
- 45 Degrees
- Tooth Form
- Straight
- Pressure Angle
- 20 Degrees
- Hub Projection
- 12.58 mm
- Bore Type
- Plain
- Precision Class
- JIS B 1704:1978 Grade 3
- Finish
- Black Oxide
- Material Grade
- S45C
- Gear Shape
- B45
- Maximum Teeth Hardness
- 194 HB
- System of Measurement
- Metric
- Metric Module Pitch
- 2.5
- Mounting Distance
- 75 mm
Description
Angular Miter Gears
