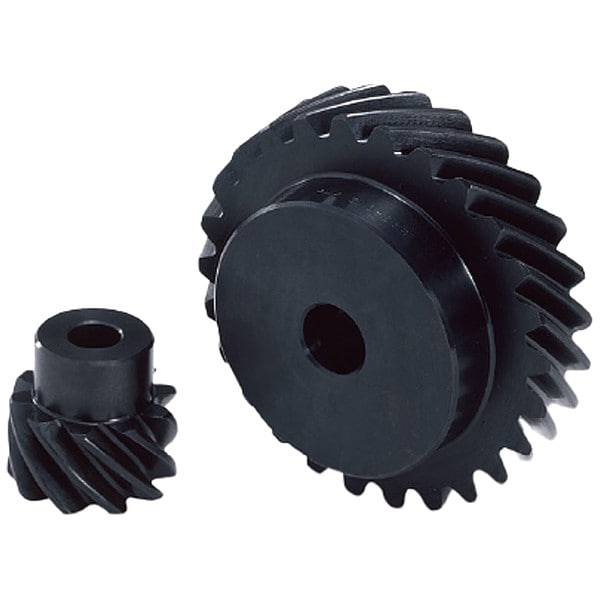

Carbon Steel Screw Gears
Mfr # SN3-20L
Zoro # G904841461
product price: $105.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Bore Type
Plain
Maximum Teeth Hardness
194 HB
Gear Type
Screw
Finish
Black Oxide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SN3-20L
Zoro #
G904841461
UPC #
-
Country of Origin
Japan
Dimensions
Hub Diameter
60 mm
Bore Diameter
20 mm
Face Width
25 mm
Pitch Diameter
84.85 mm
Overall Length
43 mm
Bore Diameter Tolerance
H7
Outside Diameter
90.85 mm
Details
Item
Screw Gear
System of Measurement
Metric
Bore Type
Plain
Maximum Teeth Hardness
194 HB
Gear Type
Screw
Finish
Black Oxide
Spiral Angle
45 Degrees
Precision Class
JIS N9 (JIS B1702-1:1998)
Pressure Angle
20 Degrees
Number of Teeth
20
Metric Module Pitch
3
Gear Shape
S1
Tooth Direction
Left Hand
Hub Projection
18 mm
Material
Carbon Steel
Description
Screw Gear, Bore Diameter 20 mm, Bore Diameter Tolerance H7, Bore Type Plain, Face Width 25 mm, Finish Black Oxide, Gear Shape S1, Gear Type Screw, Hub Diameter 60 mm, Hub Projection 18 mm, Material Carbon Steel, Maximum Teeth Hardness 194 HB, Metric Module Pitch 3, Number of Teeth 20, Outside Diameter 90.85 mm, Overall Length 43 mm
