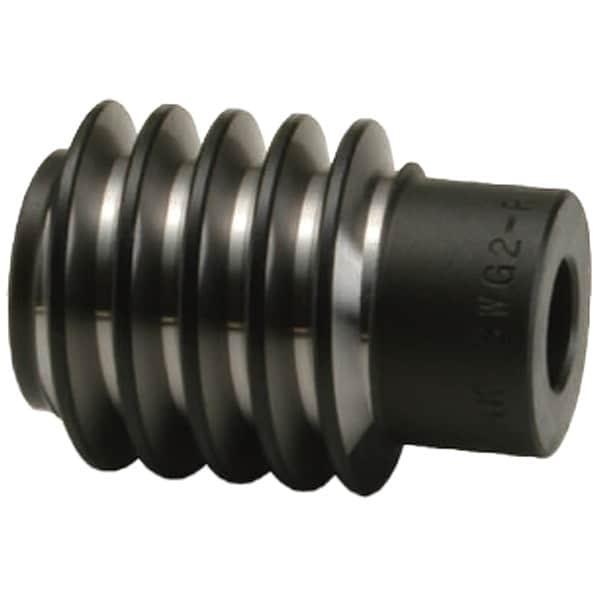

Ground and Machined Steel Worms
Mfr # SWG2-R2
Zoro # G504671376
product price:Â
$
103.99
/ea
Free Shipping & Returns
Key Features
Material
Carbon Steel
Overall Length
50 mm
Bore Diameter
12 mm
Outside Diameter
35 mm
Finish
Black Oxide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SWG2-R2
- Zoro #
- G504671376
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 50 mm
- Bore Diameter
- 12 mm
- Outside Diameter
- 35 mm
- Hub Diameter
- 25 mm
- Bore Diameter Tolerance
- +/- 0.2 mm
- Pitch Diameter
- 31 mm
- Face Width
- 32 mm
- Wire Rope Length
- 50 mm
- Length
- 50 mm
Details
- Item
- Ground & Machined Worm
- Material
- Carbon Steel
- Finish
- Black Oxide
- Teeth Heat Treatment
- Hardened Teeth
- Metric Module Pitch
- 2
- Gear Shape
- W3
- Precision Class
- KHK W 001 Grade 2
- Number of Starts
- 2
- Tooth Direction
- Right Hand
- Pressure Angle
- 20 Degrees
- Bore Type
- Plain
- Hub Projection
- 15 mm
- Minimum Teeth Hardness
- 50 HRC
- Maximum Teeth Hardness
- 60 HRC
- System of Measurement
- Metric
Description
Ground & Machined Worm, Bore Diameter 12 mm, Bore Diameter Tolerance +/- 0.2 mm, Bore Type Plain, Face Width 32 mm, Finish Black Oxide, Gear Shape W3, Hub Diameter 25 mm, Hub Projection 15 mm, Material Carbon Steel, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 2, Minimum Teeth Hardness 50 HRC, Number of Starts 2, Outside Diameter 35 mm, Overall Length 50 mm, Pitch Diameter 31 mm
