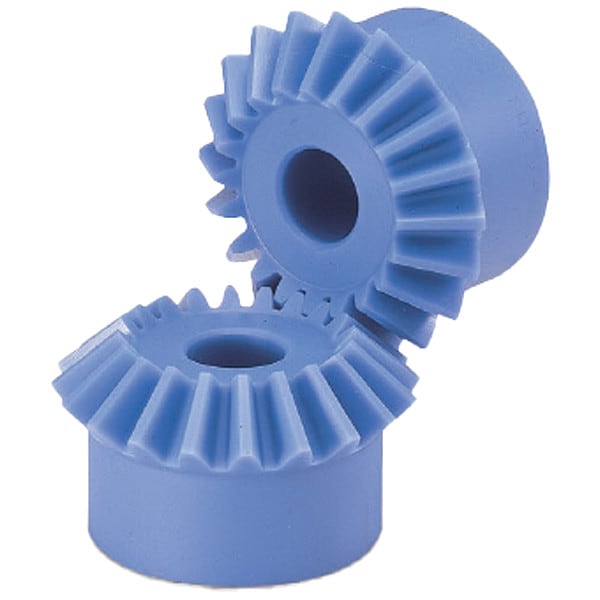

Nyllon Miter Gears

  • Mfr # PM2-25

  • Zoro # G604841815

product price:
$
55.69
/ea

Key Features

Number of Teeth
25
Material
Nylon
Precision Class
JIS B 1704:1978 Grade 4
Hub Diameter
40 mm
Pressure Angle
20 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM2-25
Zoro #
G604841815
UPC #
-
Country of Origin
China

Dimensions

Hub Diameter
40 mm
Outside Diameter
52.83 mm
Pitch Diameter
50 mm
Overall Length
24.33 mm
Face Width
12 mm
Bore Diameter
10 mm
Bore Diameter Tolerance
+/- 0.2 mm
Wire Rope Length
24.33 mm
Length
24.33 mm

Details

Item
Miter Gear
Number of Teeth
25
Material
Nylon
Precision Class
JIS B 1704:1978 Grade 4
Pressure Angle
20 Degrees
Metric Module Pitch
2
Maximum Teeth Hardness
120 HRR
Bore Type
Plain
System of Measurement
Metric
Hub Projection
10 mm
Mounting Distance
40 mm
Material Grade
MC901
Gear Shape
B3
Tooth Form
Straight
For Shaft Angle
90 Degrees
Minimum Teeth Hardness
115 HRR

Description

Nyllon Miter Gears
