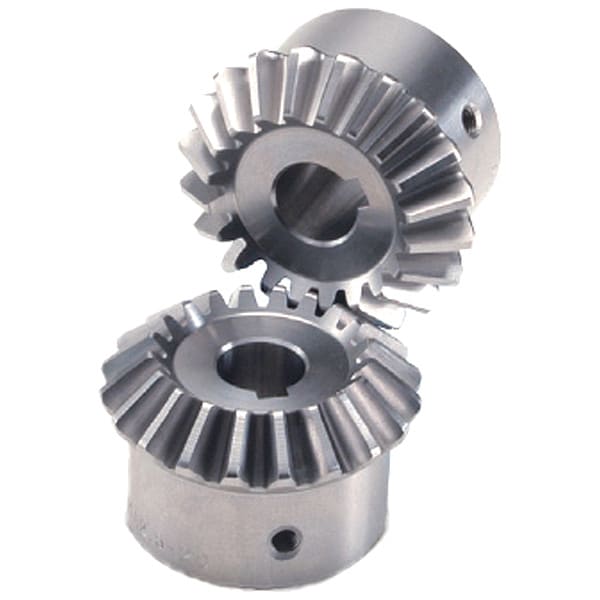

Stainless Steel Miters
Mfr # SUMA2-20
Zoro # G604845509
product price:Â
$
94.45
/ea
Key Features
Number of Teeth
20
Material
Stainless Steel
Hub Diameter
34 mm
Screw Thread Size
M4
Maximum Teeth Hardness
187 HB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUMA2-20
- Zoro #
- G604845509
- UPC #
- -
- Country of Origin
- China
Dimensions
- Hub Diameter
- 34 mm
- Screw Thread Size
- M4
- Bore Diameter
- 12 mm
- Outside Diameter
- 42.83 mm
- Bore Diameter Tolerance
- H7
- Keyway Width
- 4 mm
- Keyway Depth
- 1.8 mm
- Face Width
- 10 mm
- Overall Length
- 24.89 mm
- Pitch Diameter
- 40 mm
- Wire Rope Length
- 24.89 mm
- Length
- 24.89 mm
Description
Miter Gear, Bore Diameter 12 mm, Bore Diameter Tolerance H7, Bore Type Finished, Face Width 10 mm, For Shaft Angle 90 Degrees , Gear Shape BK, Hub Diameter 34 mm, Hub Projection 14 mm, Hub Type Hub with Set Screws, Includes Set Screw, Keyway Yes, Keyway Depth 1.8 mm, Keyway Width 4 mm, Material Stainless Steel, Material Grade SUS303, Maximum Teeth Hardness 187 HB, Metric Module Pitch 2
