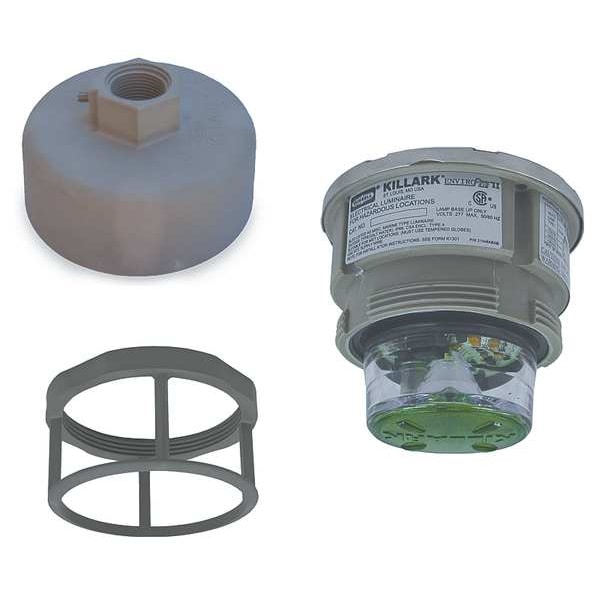

Killark Hazard Location Fixtures NVSLCFG25GAG - main

Hazard Location Fixtures

  • Mfr # NVSLCFG25GAG

  • Zoro # G3464465

product price: $489.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
30% Glass Filled Thermoset Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSLCFG25GAG
Zoro #
G3464465
UPC #
-
Country of Origin
Multiple

Dimensions

Dia. (In.)
4.75
Length (In.)
4.22
Width (In.)
4.22
Height (In.)
6.55
Nominal Height
6 35/64 in
Nominal Width
4 17/32 in
Overall Height
5 1/2 in
Overall Length
5 1/2 in
Overall Width
17 1/2 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Depth
5 1/2 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
30% Glass Filled Thermoset Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Marine Rated (US only), NEMA 4X, Type 4X
Housing Finish
Powder Epoxy Paint
Lamp Type - Fixtures
Flashing Strobe
Color
Green
Type
Flashing
Lamp Type
LED
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Flashes per Minute
420 Microflashes
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Green Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Fixture Wattage
1
Fixture Voltage
120 to 240V AC
Voltage
120 to 240 V AC
Dimmable
No
Lamp Watts - Fixtures
1.0
Lamp Quantity
1
Max. Fixture Wattage
1 W
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Life (Hours)
50K
Lamp Included
No
Ambient Temp. Range (F)
-40 to 40c
Series
NVSL
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Ingress Protection Rating
66
Fixture Rated Life
50,000 hr
CA Title 24 Compliant
No
Max. Ambient Temp.
104 Degrees F
Mounting Style
Pendant
Number of Bulbs
1
For Bulb Type
LED
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
For Bulb Shape
Integrated LED
Temperature Code
T6
Mounting Location
Pendant
Min. Ambient Temp.
-40 Degrees F
Flasher Strobe Color
Green
UL/CSA/ETL Listed
CSA, CSA US Certified
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Light Source
LED
Operating Temperature - Minimum
-40 Degrees C
Operating Temperature - Maximum
40 Degrees C
NEMA Rating
NEMA 4X
Lens Color
Green
Wattage
1 W
Operating Voltage
120 to 240 V AC

Description

Hazardous Location Signal Light, Color Green, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material 30 Percent Glass Filled Thermoset Polyester, Mounting Pendant, Voltage 120-240V AC
