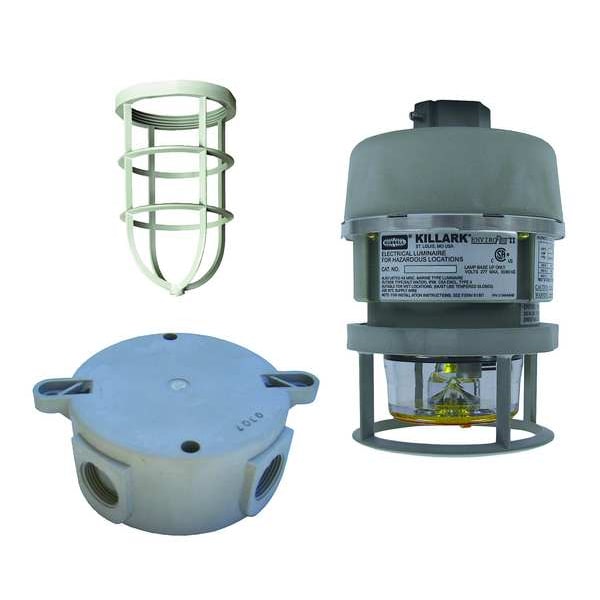

Killark Hazard Location Fixtures NVSLCFG26AXG - main

Hazard Location Fixtures

  • Mfr # NVSLCFG26AXG

  • Zoro # G3414381

product price: $432.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Amber
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSLCFG26AXG
Zoro #
G3414381
UPC #
783936070568
Country of Origin
Multiple

Dimensions

Width (In.)
4.22
Nominal Width
4 35/64 in
Length (In.)
4.22
Dia. (In.)
4.75
Nominal Height
6 11/32 in
Height (In.)
6.34
Overall Height
6 3/8 in
Overall Width
4 9/16 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Depth
6 11/32 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Amber
Includes
Guard
IP Rating
IP66
Mounting
Ceiling
Standards
Enclosure Type 4X, Marine Rated (US only), NEMA 4X
Emergency Battery Backup
No
Lamp Included
No
Type
Flashing
Lamp Type - Fixtures
Flashing Strobe
Linkable Up To
Unlinkable
Series
NVSL
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Amber Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Flashes per Minute
420 Microflashes
Ambient Temp. Range (F)
-40 to 40c
Fixture Voltage
12 to 80V AC
Fixture Wattage
1
Housing Finish
Powder Epoxy Paint
Color
Amber
Lamp Type
LED
Voltage
12 to 80 V DC
Lamp Watts - Fixtures
1.0
Lamp Life (Hours)
50K
Max. Fixture Wattage
1 W
Lamp Quantity
1
Dimmable
No
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Lamp Watts
1 W
Max. Ambient Temp.
104 Degrees F
For Bulb Shape
Integrated LED
Ingress Protection Rating
66
For Max. Bulb Wattage
1 W
For Bulb Type
LED
Number of Bulbs
1
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
CA Title 24 Compliant
No
Flasher Strobe Color
Amber
UL/CSA/ETL Listed
CSA, CSA Certified, UL Listed
Min. Ambient Temp.
-40 Degrees F
Temperature Code
T6
Mounting Location
Ceiling
Light Source
LED
Operating Temperature - Minimum
-40 Degrees C
Wattage
1 W
Lens Color
Amber
Operating Temperature - Maximum
40 Degrees C
NEMA Rating
NEMA 4X
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Amber, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material Fiberglass Reinforced, Polyester, Mounting Ceiling, Voltage 12-80V DC
