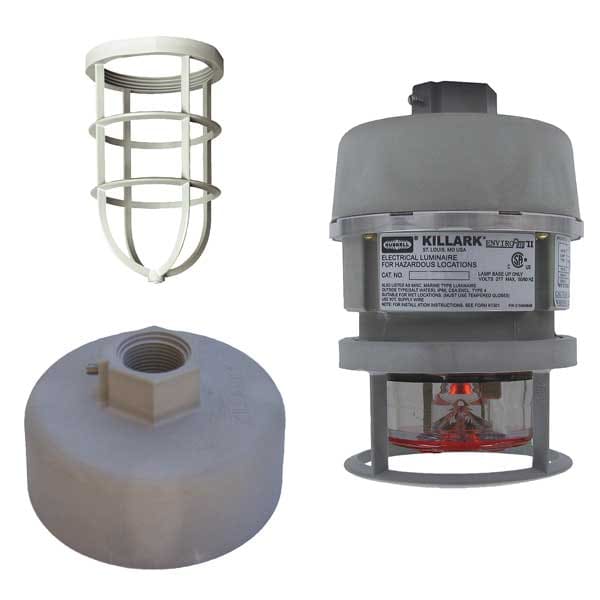

Killark Hazard Location Fixtures NVSLCFG26RAG - main

Hazard Location Fixtures

  • Mfr # NVSLCFG26RAG

  • Zoro # G2353321

product price: $429.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSLCFG26RAG
Zoro #
G2353321
UPC #
783936070377
Country of Origin
Multiple

Dimensions

Nominal Height
6 35/64 in
Width (In.)
4.22
Nominal Width
4 17/32 in
Height (In.)
6.55
Dia. (In.)
7.26
Length (In.)
4.22
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Height
6 1/2 in
Overall Width
4 17/32 in
Overall Depth
6 9/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Enclosure Type 4X, Marine Rated (US only), NEMA 4X
Type
Flashing
Max. Fixture Wattage
1 W
Lamp Included
No
Series
NVSL
Emergency Battery Backup
No
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Quantity
1
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Color
Red
Dimmable
No
Lamp Type - Fixtures
Flashing Strobe
Housing Finish
Powder Epoxy Paint
Lamp Life (Hours)
50K
Voltage
12 to 80 V DC
Flashes per Minute
420 Microflashes
Lamp Type
LED
Linkable Up To
Unlinkable
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Fixture Wattage
1
Ambient Temp. Range (F)
-40 to 40c
Lamp Watts - Fixtures
1.0
Fixture Voltage
12 to 80V AC
Lamp Watts
1 W
Number of Bulbs
1
Min. Ambient Temp.
-40 Degrees F
For Bulb Shape
Integrated LED
CA Title 24 Compliant
No
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
Ingress Protection Rating
66
UL/CSA/ETL Listed
CSA, CSA Certified, UL Listed
For Bulb Type
LED
Temperature Code
T6
For Max. Bulb Wattage
1 W
Flasher Strobe Color
Red
Max. Ambient Temp.
104 Degrees F
Mounting Style
Pendant
Mounting Location
Pendant
Operating Temperature - Maximum
40 Degrees C
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Wattage
1 W
Operating Temperature - Minimum
-40 Degrees C
Lens Color
Red
Light Source
LED
NEMA Rating
NEMA 4X
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material Fiberglass Reinforced, Polyester, Mounting Pendant, Voltage 12-80V DC
