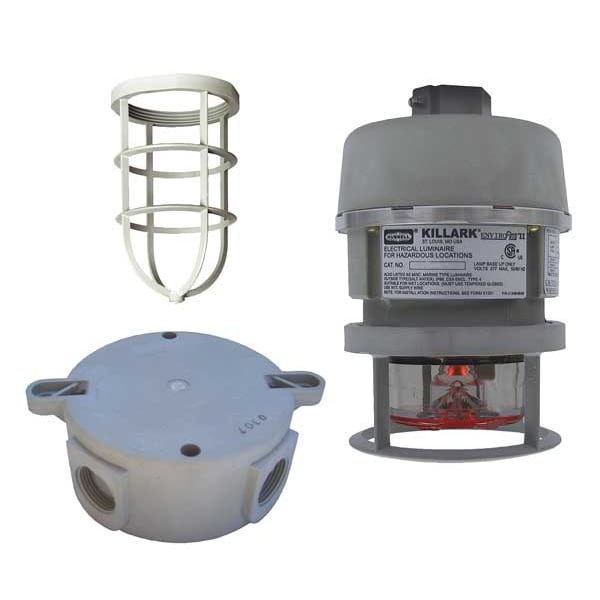

Killark Hazard Location Fixtures NVSLCFG26RXG - main

Hazard Location Fixtures

  • Mfr # NVSLCFG26RXG

  • Zoro # G2599256

product price: $432.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSLCFG26RXG
Zoro #
G2599256
UPC #
783936070575
Country of Origin
Multiple

Dimensions

Nominal Width
4 35/64 in
Width (In.)
4.22
Nominal Height
6 11/32 in
Height (In.)
6.34
Dia. (In.)
4.75
Length (In.)
4.22
Overall Width
4 9/16 in
Overall Height
6 3/8 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Depth
6 11/32 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
Mounting
Ceiling
Standards
Enclosure Type 4X, Marine Rated (US only), NEMA 4X
Series
NVSL
Type
Flashing
Linkable Up To
Unlinkable
Lamp Life (Hours)
50K
Max. Fixture Wattage
1 W
Housing Finish
Powder Epoxy Paint
Lamp Type
LED
Lamp Included
No
Ambient Temp. Range (F)
-40 to 40c
Emergency Battery Backup
No
Color
Red
Dimmable
No
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Fixture Voltage
12 to 80V AC
Lamp Watts - Fixtures
1.0
Fixture Wattage
1
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Voltage
12 to 80 V DC
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Lamp Quantity
1
Lamp Type - Fixtures
Flashing Strobe
Flashes per Minute
420 Microflashes
Lamp Watts
1 W
Temperature Code
T6
For Bulb Shape
Integrated LED
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
Flasher Strobe Color
Red
Mounting Location
Ceiling
Ingress Protection Rating
66
Min. Ambient Temp.
-40 Degrees F
Number of Bulbs
1
For Max. Bulb Wattage
1 W
UL/CSA/ETL Listed
CSA, CSA Certified, UL Listed
For Bulb Type
LED
Max. Ambient Temp.
104 Degrees F
CA Title 24 Compliant
No
Operating Temperature - Minimum
-40 Degrees C
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Lens Color
Red
NEMA Rating
NEMA 4X
Light Source
LED
Operating Temperature - Maximum
40 Degrees C
Wattage
1 W
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material Fiberglass Reinforced, Polyester, Mounting Ceiling, Voltage 12-80V DC
